Scavenge Pump: Removal

CAUTION: If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Remove the oil pipe assembly. Refer to LUBRICATION(W/O STI)>OIL PIPE>REMOVAL>OIL PIPE ASSEMBLY .

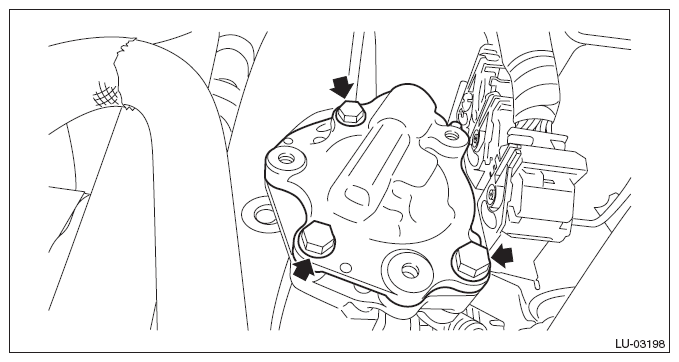

  2. Remove the bolts which secure the scavenge pump to the intake rear camshaft cap RH and the cam carrier RH. Using a crowbar, remove the scavenge pump.
    CAUTION: Be careful not to damage the mating surfaces of the cylinder head and scavenge pump.
    G10267325Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the liquid gasket from the scavenge pump, intake rear camshaft cap RH, and cam carrier RH.
