2.0 L Model

WARNING: This page is about a different variant/trim than selected.
CAUTION: If the engine coolant is spilt over the engine or the exhaust pipe, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .
  5. Remove the generator. Ref. to STARTING/CHARGING SYSTEMS (H4DO (EXCEPT FOR HEV))>GENERATOR>REMOVAL .
  6. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>INTAKE MANIFOLD ASSEMBLY>REMOVAL>2.0 L MODEL .
  7. Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .

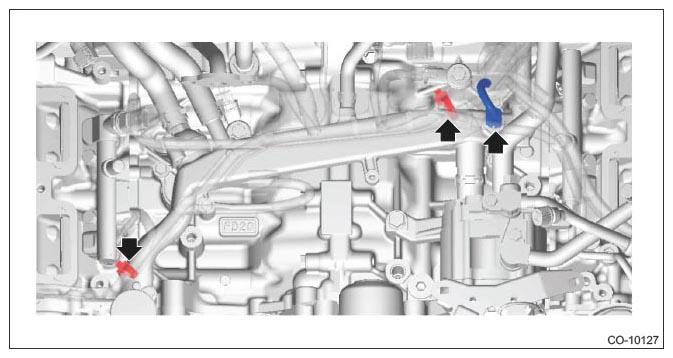

  8. Disconnect the connector from the engine coolant temperature sensor, and remove the engine wiring harness from the water tank pipe.
    G11253577Courtesy of SUBARU OF AMERICA, INC.

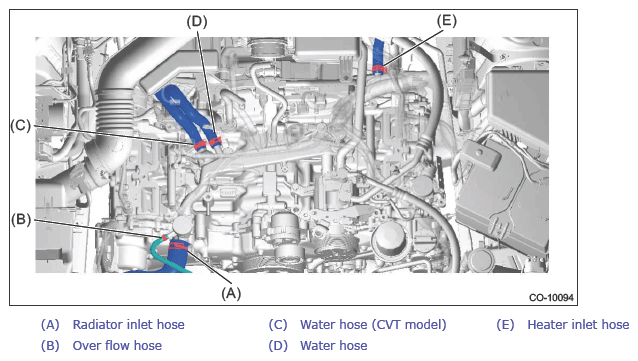

  9. Disconnect each hose shown in the figure.
    G13876545Courtesy of SUBARU OF AMERICA, INC.

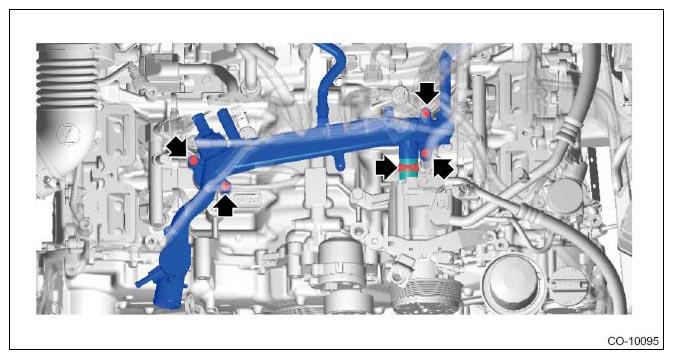

  10. Remove the bolts securing the water tank pipe assembly, and disconnect the water hose (front side) to remove the water tank pipe assembly.
    G11253579Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the filler neck from the water tank pipe assembly. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>WATER PIPE>REMOVAL>FILLER NECK .
