Section 4 (Engine Starting System & Charging System (Except For HEV)): Generator: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
- Remove the V-belts. Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>V-BELT>REMOVAL>GASOLINE ENGINE MODEL .

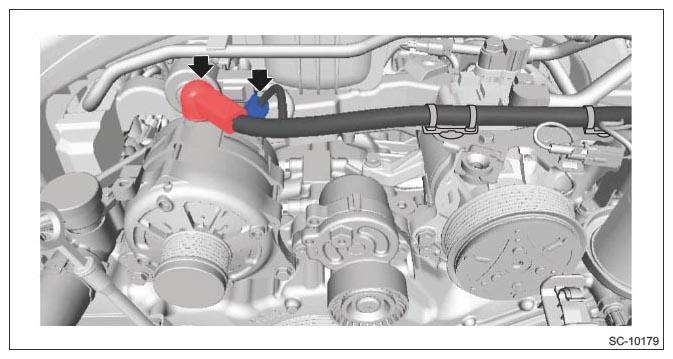

- Disconnect the connector and terminal B.

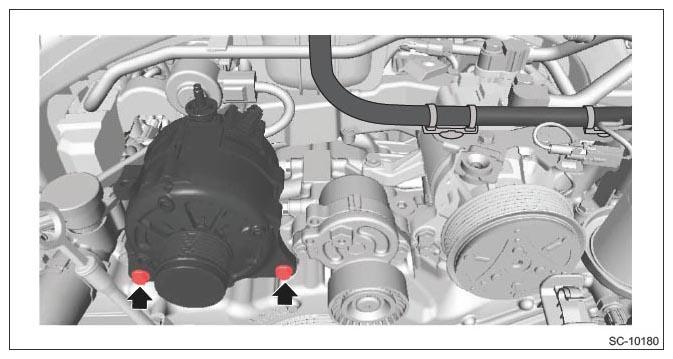

- Remove the generator.
