Filler Neck

WARNING: This page is about a different variant/trim than selected.
  1. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .

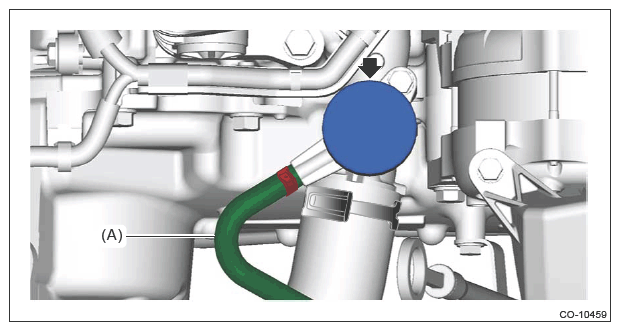

  3. Disconnect the over flow hose (A), and remove the water tank pipe cap.
    G13230546Courtesy of SUBARU OF AMERICA, INC.

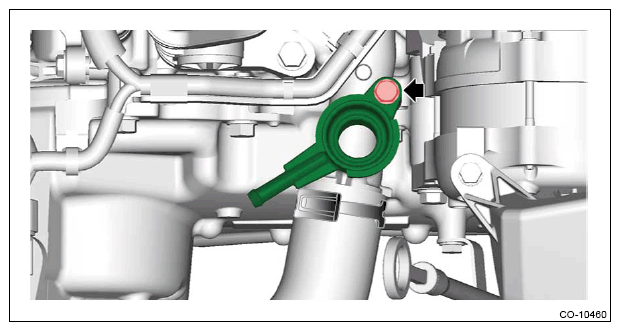

  4. Remove the filler neck.
    G13230547Courtesy of SUBARU OF AMERICA, INC.
