Transmission Case: Removal

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)> MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the clutch release lever and the release bearing. Ref. to CLUTCH SYSTEM>RELEASE BEARING AND LEVER>REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>REMOVAL .
  4. Remove the bearing mounting bolt.
    G10323009Courtesy of SUBARU OF AMERICA, INC.

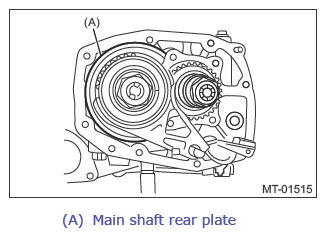

  5. Remove the main shaft rear plate.
    G13937401Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bolts and nuts, and separate the transmission case.
    G10323011Courtesy of SUBARU OF AMERICA, INC.

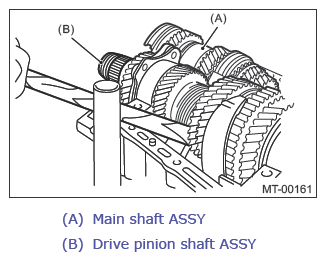

  7. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.
    G13937403Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the main shaft assembly.
  9. Remove the front differential assembly.
    G08318991Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the differential side retainers and taper roller bearing outer races. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>FRONT DIFFERENTIAL ASSEMBLY>REMOVAL .
    CAUTION: Do not confuse the right and left taper roller bearing outer races.
  11. Remove the reverse idler gear. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>REVERSE IDLER GEAR>REMOVAL .
  12. Remove the shifter fork and rod. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>SHIFTER FORK AND ROD>REMOVAL .
