Release Bearing and Lever: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly.
  2. Remove the two clips from the release lever and remove the release bearing.
    CAUTION: Be careful not to deform the clips.
  3. Remove the dust cover.
    G13937897Courtesy of SUBARU OF AMERICA, INC.

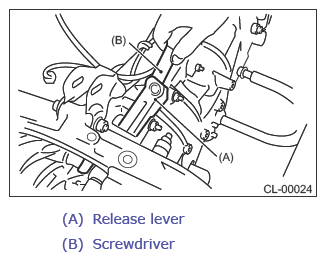

  4. Remove the attachment point of lever spring by inserting a screwdriver through the clutch housing release lever hole. Then remove the release lever.
    G13937898Courtesy of SUBARU OF AMERICA, INC.
