Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the transfer case together with the extension case assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>REMOVAL .
  3. Remove the transmission case. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>TRANSMISSION CASE>REMOVAL .

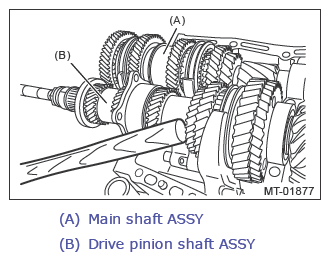

  4. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.
    G13604679Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the main shaft assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>MAIN SHAFT ASSEMBLY>REMOVAL .
