Reverse Brake Assembly: Installation

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Select a washer. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>FORWARD CLUTCH ASSEMBLY>ADJUSTMENT .
  2. Install the selected washer to the reverse brake housing.
    G12476386Courtesy of SUBARU OF AMERICA, INC.
  3. Install the thrust bearing to the reverse brake housing.
    NOTE: Face the temper color surface to the reverse brake side.
    G08318026Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the internal gear from the forward clutch assembly, and install it to the reverse brake housing.
    G08318027Courtesy of SUBARU OF AMERICA, INC.
  5. Install the O-rings.
    NOTE:
    • Install a new O-ring.
    • Apply CVTF to the O-rings.
    G08318024Courtesy of SUBARU OF AMERICA, INC.
  6. Install the reverse brake assembly and internal gear as a unit to the drive pinion retainer.
    NOTE: Slowly rotate the input shaft by hand to engage the internal gear and pinion gear of planetary carrier.

    Tightening torque:

    37 N.m (3.8 kgf-m, 27.3 ft-lb)

    G08318023Courtesy of SUBARU OF AMERICA, INC.
  7. Install the O-ring to the lubrication pipe.
    NOTE:
    • Install a new O-ring.
    • Apply CVTF to the O-rings.
    G08318022Courtesy of SUBARU OF AMERICA, INC.

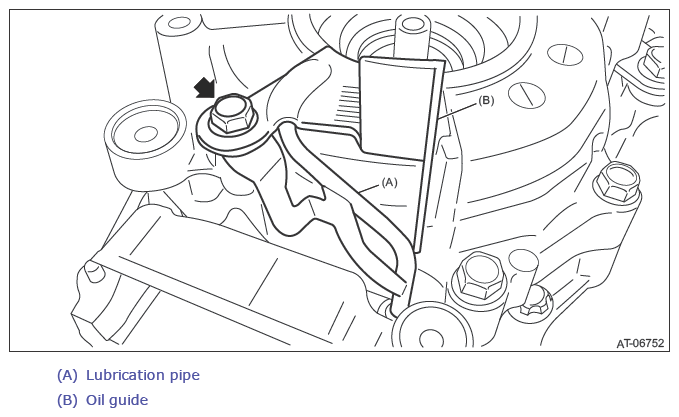

  8. Install the lubrication pipe and oil guide.

    Tightening torque:

    16 N.m (1.6 kgf-m, 11.8 ft-lb)

    G13603782Courtesy of SUBARU OF AMERICA, INC.
  9. Install the manual valve assembly and separator plate.

    Tightening torque:

    9 N.m (0.9 kgf-m, 6.6 ft-lb)

    G08318020Courtesy of SUBARU OF AMERICA, INC.
  10. Install the primary pulley, secondary pulley and variator chain. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PRIMARY PULLEY AND SECONDARY PULLEY>INSTALLATION .
  11. Select shims for pulley alignment. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PRIMARY PULLEY AND SECONDARY PULLEY>ADJUSTMENT .
  12. Install the reduction drive gear. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>REDUCTION DRIVE GEAR>INSTALLATION .
  13. Install the transmission case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION CASE>INSTALLATION .
  14. Install the transmission control device. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION CONTROL DEVICE>INSTALLATION .
  15. Install the oil strainer and oil pan. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>OIL PAN AND STRAINER>INSTALLATION .
  16. Install the reduction driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>REDUCTION DRIVEN GEAR>INSTALLATION .
  17. Install the parking pawl. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PARKING PAWL>INSTALLATION .
  18. Install the transfer driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSFER DRIVEN GEAR>INSTALLATION .
  19. Install the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSFER CLUTCH>INSTALLATION .
  20. Install the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>EXTENSION CASE>INSTALLATION .
  21. Install the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>INHIBITOR SWITCH>INSTALLATION .
  22. Install the secondary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>SECONDARY SPEED SENSOR>INSTALLATION .
  23. Install the primary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PRIMARY SPEED SENSOR>INSTALLATION .
  24. Install the turbine speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TURBINE SPEED SENSOR>INSTALLATION .
  25. Install the transmission harness. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION HARNESS>INSTALLATION .
  26. Install the control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>CONTROL VALVE BODY>INSTALLATION .
  27. Install the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AIR BREATHER HOSE>INSTALLATION .
  28. Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
