Transmission Harness: Installation

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Clean the mating surface of valve cover and transmission side.
Check the control valve body for dust and other foreign matter.
Install the O-rings.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission harness.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Attach the gasket.
NOTE: Use a new gasket.
Apply liquid gasket to the oval hole of gasket.
Liquid gasket:

THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Connect the transmission harness connector to the control valve body, and install the valve cover.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

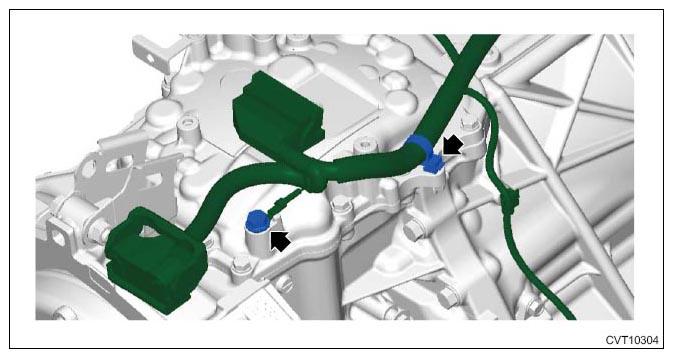

Install the transmission ground terminal and harness clip.
Tightening torque:

14 N.m (1.4 kgf-m, 10.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

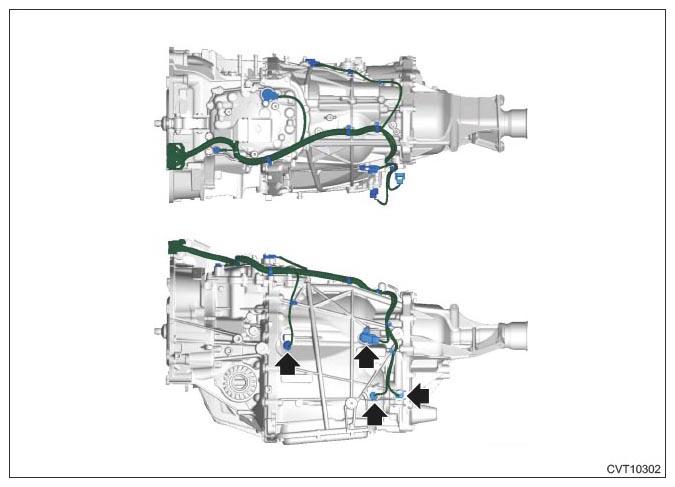

Connect the harness connector to the inhibitor switch.
Connect the harness connector to the turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.

Courtesy of SUBARU OF AMERICA, INC.
Install the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AIR BREATHER HOSE>INSTALLATION .
Install the transmission case cover (large).
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Install the transmission assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
Adjust the CVTF level. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>CVTF>ADJUSTMENT .
