Inhibitor Switch: Installation

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

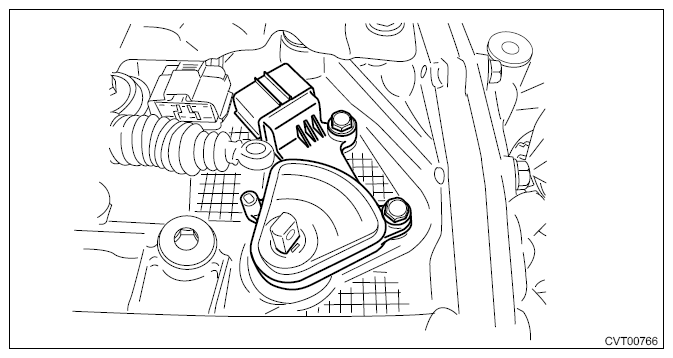

  1. Install the inhibitor switch to the transmission case temporarily.
    G11255610Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector.

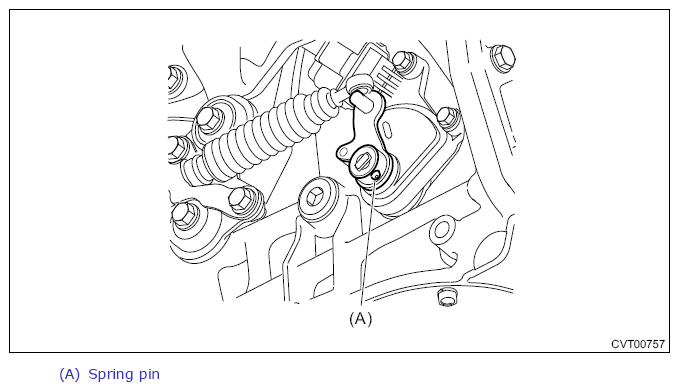

  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.
    G13603503Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.
  5. Install the ST vertically in the cut out of shifter arm and the hole of switch body.

    Preparation tool:

    ST: STOPPER PIN (499267300)

    G11255606Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

  7. Install the select cable to the shifter arm.

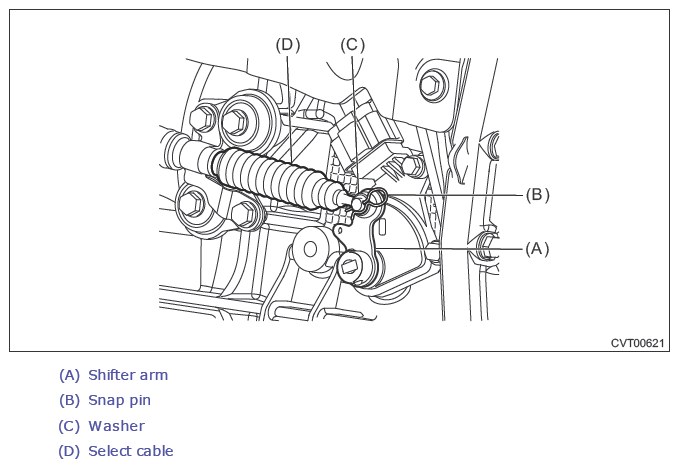

  8. Install the select cable, washer and snap pin.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13603506Courtesy of SUBARU OF AMERICA, INC.
  9. Install the front exhaust pipe. Refer to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>INSTALLATION .
  10. Lower the vehicle.
  11. Shift the select lever to "P range".
  12. Connect the ground terminal to 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  13. Check the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>INHIBITOR SWITCH>INSPECTION .
