Instrument Panel LWR: Removal

List of bolts, screws, and nuts

NOTE:
  • Bolts, screws, and nuts required for removal or installation of the instrument panel LWR are indicated by symbols in context and figures.
  • In the figure, D represents nominal (mm) while L represents bolt length (mm).
G12594790Courtesy of SUBARU OF AMERICA, INC.
  1. Precautions
    CAUTION: After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Disconnection of the battery ground terminal (Refer to REMOVAL )
  3. Removal of console box ASSY (Refer to REMOVAL )

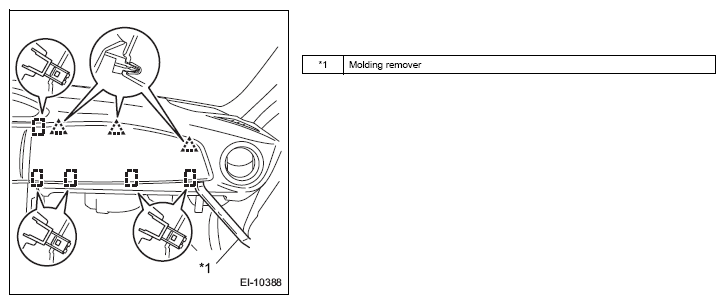

  4. Removal of instrument panel ornament
    1. Release the 8 clips and remove the instrument panel ornament.
      G12594791Courtesy of SUBARU OF AMERICA, INC.

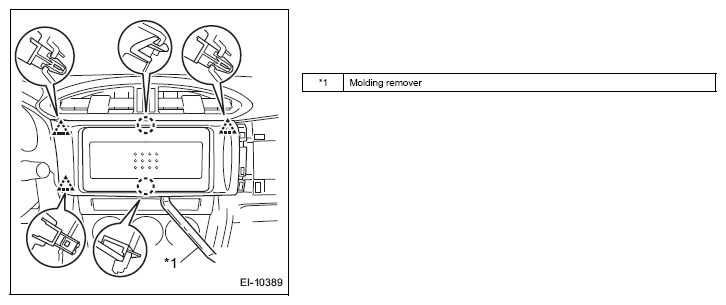

  5. Removal of instrument cluster finish panel SUB-ASSY CTR
    1. Release the 2 clips and 3 claws with a molding remover, and remove instrument cluster finish panel SUB-ASSY CTR.
      G12594792Courtesy of SUBARU OF AMERICA, INC.
  6. REMOVE RADIO&DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    1. Remove the 4 bolts to remove the radio&display receiver ASSEMBLY with bracket.
      G11261025Courtesy of SUBARU OF AMERICA, INC.
  7. REMOVE NAVIGATION SYSTEM WITH BRACKET
    1. Remove the 4 bolts to remove the navigation system with bracket.
      G11246568Courtesy of SUBARU OF AMERICA, INC.
  8. Removal of instrument cluster finish panel garnish NO. 2
    1. Remove the screw and release the 6 claws. Pull instrument cluster finish panel garnish NO. 2 toward you and remove it.
      G12594795Courtesy of SUBARU OF AMERICA, INC.
  9. Removal of instrument panel finish panel SUB-ASSY UPR (installed on the LH side)
    1. Remove the screw.
    2. Release the 3 claws and remove the instrument panel finish panel SUB-ASSY UPR.
      G12594796Courtesy of SUBARU OF AMERICA, INC.
  10. Removal of instrument cluster finish panel garnish NO. 1
    NOTE: Remove the part in the same manner as LH side.
  11. Removal of instrument panel finish panel SUB-ASSY UPR (installed on the RH side)
  12. Removal of air conditioner control ASSY (for automatic air conditioning system) (Refer to REMOVAL )
  13. Removal of air conditioner control ASSY (for manual air conditioning system) (Refer to REMOVAL )
  14. Removal of instrument side panel LH
    1. Release the 4 clips and the claw with a molding remover, and remove the instrument side panel LH.
      G12594797Courtesy of SUBARU OF AMERICA, INC.
  15. Removal of instrument side panel RH
    NOTE: Remove the part in the same manner as LH side.
  16. Removal of meter hood SUB-ASSY
    1. Remove the screw.
    2. Release the 12 claws. Pull the meter hood SUB-ASSY obliquely upward and toward you and remove it.
      G12594798Courtesy of SUBARU OF AMERICA, INC.
  17. Removal of instrument panel meter ornament UPR
    1. Release the 2 clips and 6 claws.
      G08555500Courtesy of SUBARU OF AMERICA, INC.
    2. Release the 2 claws connecting the instrument panel meter ornament UPR to the steering column cover.
    3. Disconnect the connector and remove the instrument panel meter ornament UPR.
      G12594800Courtesy of SUBARU OF AMERICA, INC.
  18. Removal of instrument panel under cover SUB-ASSY NO. 1 (Refer to LIGHT CONTROL RHEOSTAT )
  19. Removal of glove compartment door ASSY
    1. Release the claw and disconnect the glove compartment door damper.
      G12594801Courtesy of SUBARU OF AMERICA, INC.

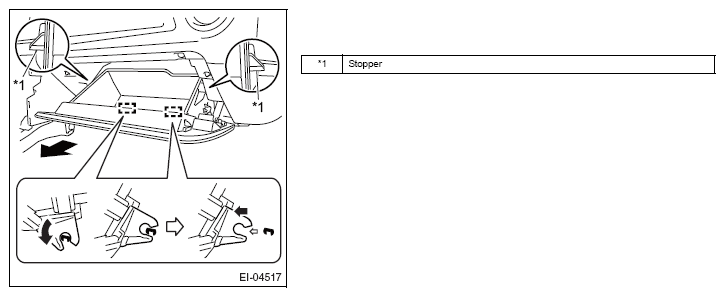

    2. Release the 2 stoppers and pull out the glove compartment door ASSY until it is level.
      G12594802Courtesy of SUBARU OF AMERICA, INC.
    3. Pull the glove compartment door ASSY horizontally, release the 2 hinges, and remove the glove compartment door ASSY.
      CAUTION: If the glove compartment door ASSY is pulled upward and removed, the hinges may be loosened. Always pull the ASSY horizontally to remove it.
  20. Removal of glove compartment door damper
    1. Release the claw and remove the glove compartment door damper.
      G12594803Courtesy of SUBARU OF AMERICA, INC.
  21. Removal of instrument panel SUB-ASSY LWR
    1. Remove the 7 screws.
      G12594804Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the 2 screws and nuts.
      G12594805Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the aspirator hose. (Automatic air conditioning system model)

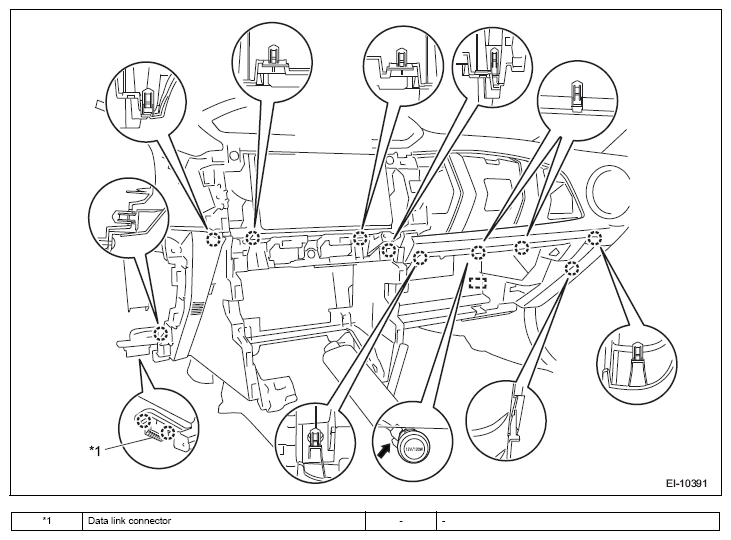

    4. Release the 14 claws, disconnect the connectors and clamps, and remove the instrument panel SUB-ASSY LWR.
    G08555507Courtesy of SUBARU OF AMERICA, INC.
    G12594807Courtesy of SUBARU OF AMERICA, INC.
