Air Conditioner Panel (For Manual Air Conditioning System): Removal

  1. Removal of console box ASSY (Refer to REMOVAL )
  2. Removal of the instrument panel ornament (Refer to REMOVAL )
  3. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to REMOVAL )
  4. Removal of instrument cluster finish panel garnish NO. 1 (Refer to REMOVAL )
  5. Removal of instrument cluster finish panel garnish NO. 2 (Refer to REMOVAL )
  6. Removal of air conditioner control ASSY

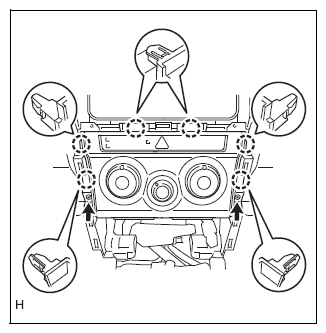

    1. Remove the 2 screws and release the 6 claws.
      G12591781Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connectors, and disconnect the air conditioner control ASSY.
      G12591782Courtesy of SUBARU OF AMERICA, INC.

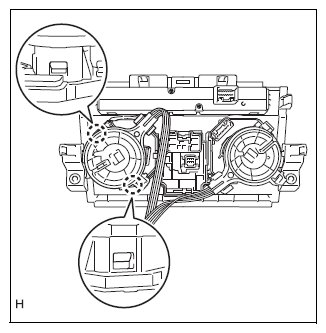

    3. Release the 2 claws and disconnect the heater control cable SUB-ASSY. (installed on the RH side)
      NOTE: If the dial position is set to MAX HOT, it can ease replacement work of the air conditioner unit ASSY because positioning can be easily performed when installing the cable.
      G12591783Courtesy of SUBARU OF AMERICA, INC.

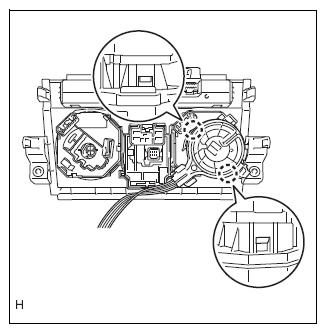

    4. Release the 2 claws, disconnect the heater control cable SUB-ASSY (installed on the LH side) and remove the air conditioner control ASSY.
      NOTE: Setting the dial position to "DEF" facilitates the replacement work of the air conditioner unit ASSY, and thus allows an easy positioning during installation of the cable.
      G12591784Courtesy of SUBARU OF AMERICA, INC.
