Air Conditioner Panel (For Automatic Air Conditioning System): Removal

  1. Removal of console box ASSY (Refer to REMOVAL )
  2. Removal of the instrument panel ornament (Refer to REMOVAL )
  3. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to REMOVAL )
  4. Removal of instrument cluster finish panel garnish NO. 1 (Refer to REMOVAL )
  5. Removal of instrument cluster finish panel garnish NO. 2 (Refer to REMOVAL )
  6. Removal of air conditioner control ASSY

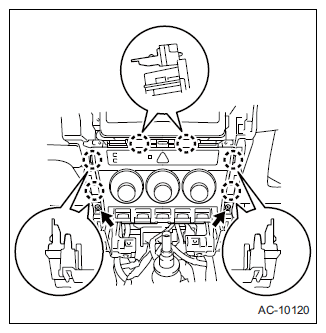

    1. Remove the 2 screws.
    2. Release the 6 tabs.
      G11262419Courtesy of SUBARU OF AMERICA, INC.
      G12591775Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connectors, and disconnect the air conditioner control ASSY.
