Cam Carrier RH

WARNING: This page is about a different variant/trim than selected.
  1. Insert the steel rods into ST, and set the engine so that the camshaft RH is facing up.
    CAUTION:
    • If the engine is standing on one side without inserting the steel rod into ST, engine may lose balance and fall down. Be sure to insert the steel rod into ST to extend the length.
    • Use the steel rod with enough strength.
    • Be careful not to pinch the engine harness with ST.

    ST 499817100 ENGINE STAND

    Fig 1: Inserting Steel Rods Into ST
    G10262671Courtesy of SUBARU OF AMERICA, INC.
  2. Apply engine oil to the valve shim and the roller rocker arm pivot, and install the valve shim and the roller rocker arm pivot to the cylinder head RH.
    Fig 2: Locating Valve Shim And Roller Rocker Arm Pivot To Cylinder Head RH
    G08317015Courtesy of SUBARU OF AMERICA, INC.
  3. Apply engine oil to the O-ring and the roller rocker arm, and install the O-ring and the roller rocker arm to the cylinder head RH.
    NOTE: Use new O-rings.
    Fig 3: Locating O-Ring And Roller Rocker Arm To Cylinder Head RH
    G08317014Courtesy of SUBARU OF AMERICA, INC.
  4. Apply liquid gasket to the mating surface of cam carrier RH as shown in the figure.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the cylinder head RH and cam carrier RH.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

    Liquid gasket applying diameter:

    3.1±0.5 mm (0.1220±0.0197 in)

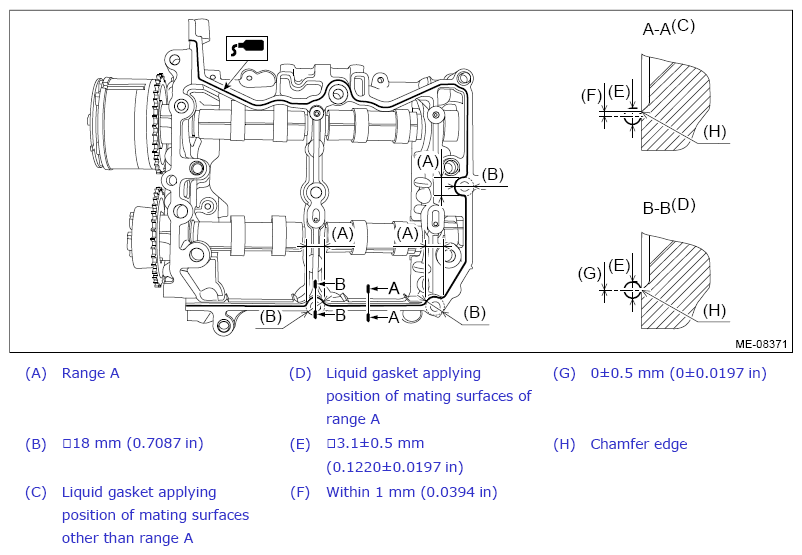

    Fig 4: Applying Liquid Gasket To Mating Surface Of Cam Carrier RH
    G11263881Courtesy of SUBARU OF AMERICA, INC.
  5. Install the cam carrier RH to the cylinder head RH.
    1. Mount the cam carrier RH, then tighten all bolts with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.
      NOTE: Set the intake camshaft RH and the exhaust camshaft RH to the zero-lift position.
      Fig 5: Setting Intake Camshaft RH And Exhaust Camshaft RH To Zero-Lift Position
      G08317031Courtesy of SUBARU OF AMERICA, INC.

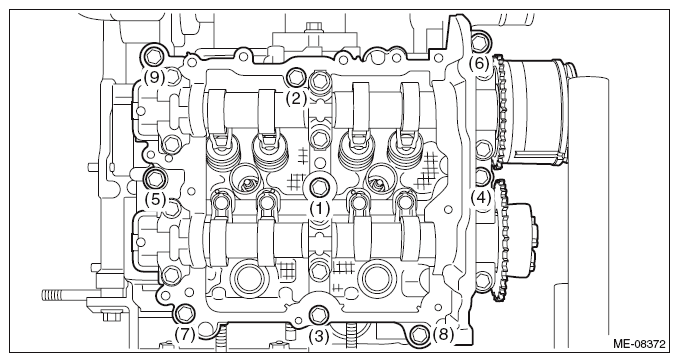

      Fig 6: Cam Carrier RH Bolts
      G10262685Courtesy of SUBARU OF AMERICA, INC.
    2. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

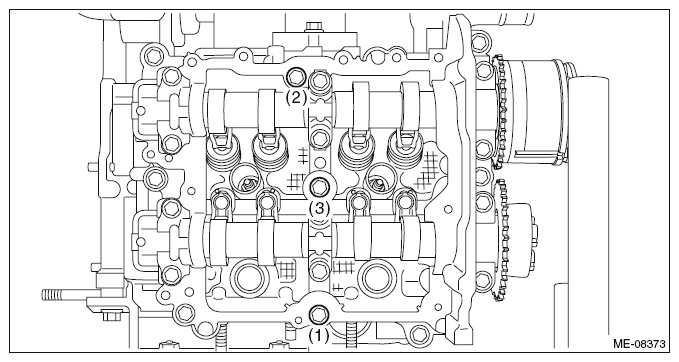

      Fig 7: Cam Carrier RH Bolts
      G10262686Courtesy of SUBARU OF AMERICA, INC.
    3. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

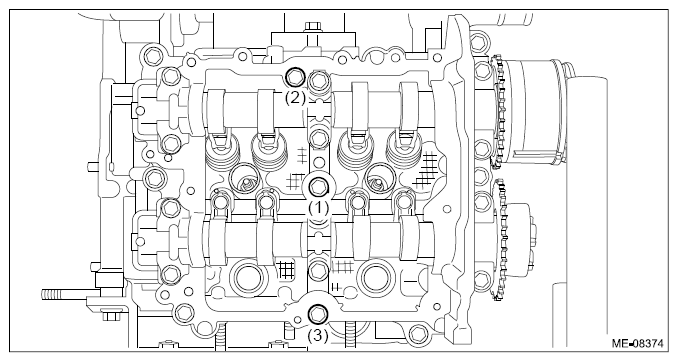

      Fig 8: Cam Carrier RH Bolts
      G11263885Courtesy of SUBARU OF AMERICA, INC.
    4. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.
      Fig 9: Cam Carrier RH Bolts
      G10262688Courtesy of SUBARU OF AMERICA, INC.
    5. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

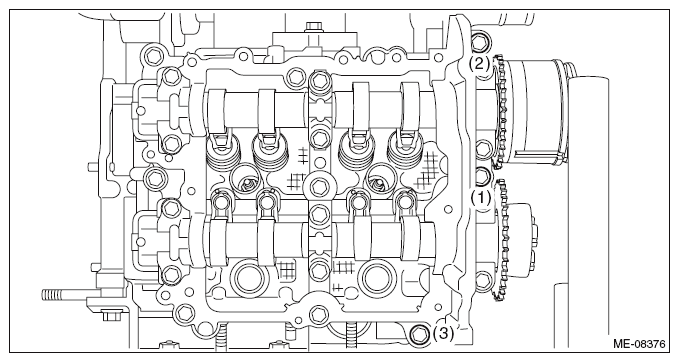

      Fig 10: Cam Carrier RH Bolts
      G10262689Courtesy of SUBARU OF AMERICA, INC.
    6. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

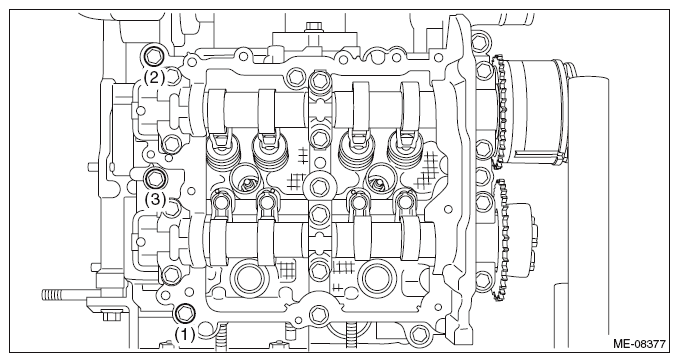

      Fig 11: Cam Carrier RH Bolts
      G10262690Courtesy of SUBARU OF AMERICA, INC.
    7. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.
      NOTE: After tightening, if the liquid gasket is squeezed out onto the seal surface of the chain cover, completely remove any squeezed-out liquid gasket.

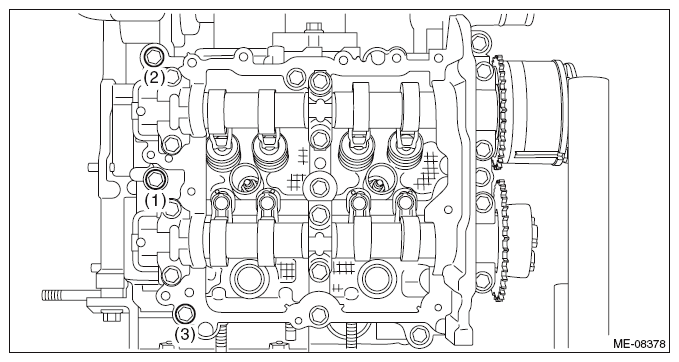

      Fig 12: Cam Carrier RH Bolts
      G10262691Courtesy of SUBARU OF AMERICA, INC.
  6. Set the part so that the intake manifold is on the upper side.
  7. Install the cam sprocket RH. Ref. to MECHANICAL(H4DO)>Cam Sprocket>INSTALLATION>CAM SPROCKET RH .
    NOTE: This procedure is required only when the cam carrier RH is removed for disassembly.
  8. Check the cam clearance. Ref. to MECHANICAL(H4DO)>Cam Clearance>INSPECTION>WHEN TIMING CHAIN ASSEMBLY IS REMOVED .
  9. Install the timing chain RH. Ref. to MECHANICAL(H4DO)>Timing Chain Assembly>INSTALLATION>TIMING CHAIN RH .
  10. Secure the engine harness to the cam carrier RH with a clip.
    Fig 13: Locating Engine Harness To Cam Carrier RH With Clip
    G08317006Courtesy of SUBARU OF AMERICA, INC.
  11. Install the rocker cover RH. Ref. to MECHANICAL(H4DO)>Rocker Cover>INSTALLATION>ROCKER COVER RH .
  12. Install the water pipe assembly RH. Ref. to COOLING(H4DO)>Water Pipe Assembly>INSTALLATION>WATER PIPE ASSEMBLY RH .
  13. Install the fuel injector RH. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Injector>INSTALLATION .
  14. Install the chain cover. Ref. to MECHANICAL(H4DO)>Chain Cover>INSTALLATION .
  15. Install the engine to the vehicle. Ref. to MECHANICAL(H4DO)>Engine Assembly>INSTALLATION .
