Cam Sprocket RH
WARNING: This page is about a different variant/trim than selected.
- INTAKE CAM SPROCKET RH

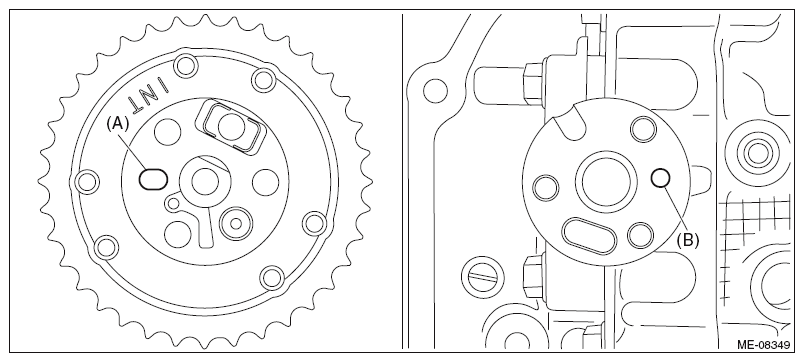

- Install the intake cam sprocket RH by aligning the knock hole (A) of intake cam sprocket RH and the knock pin (B) of intake camshaft RH.NOTE: Before installation, check that there is no foreign matter on the intake cam sprocket RH and intake camshaft RH.

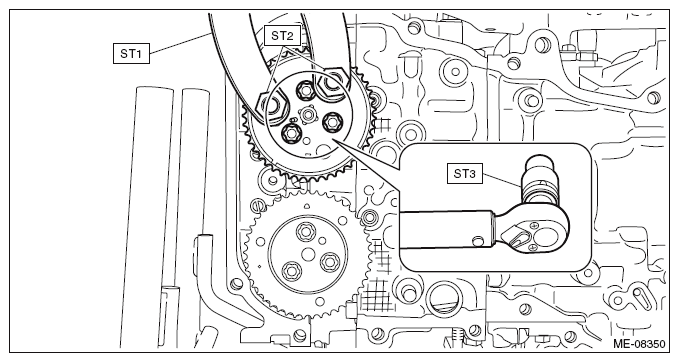

- Hold the intake cam sprocket RH using the ST1 and ST2, and install the bolts using the ST3.CAUTION: Perform the operation carefully since the ST comes off easily.
ST1 18355AA000 PULLEY WRENCH
ST2 18334AA020 PULLEY WRENCH PIN SET
ST3 18270KA010 SOCKET
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the timing chain RH. Ref. to MECHANICAL(H4DO)>Timing Chain Assembly>INSTALLATION>TIMING CHAIN RH .
- Install the chain cover. Ref. to MECHANICAL(H4DO)>Chain Cover>INSTALLATION .
- Install the intake cam sprocket RH by aligning the knock hole (A) of intake cam sprocket RH and the knock pin (B) of intake camshaft RH.
- EXHAUST CAM SPROCKET RH

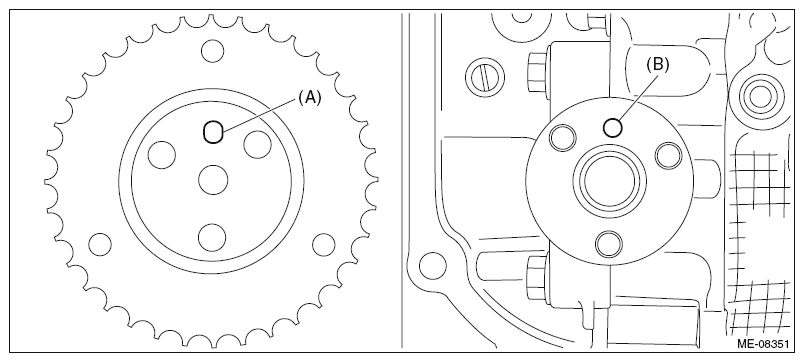

- Install the exhaust cam sprocket RH by aligning the knock hole (A) of exhaust cam sprocket RH and the knock pin (B) of exhaust camshaft RH.NOTE: Before installation, check that there is no foreign matter on the exhaust cam sprocket RH and exhaust camshaft RH.

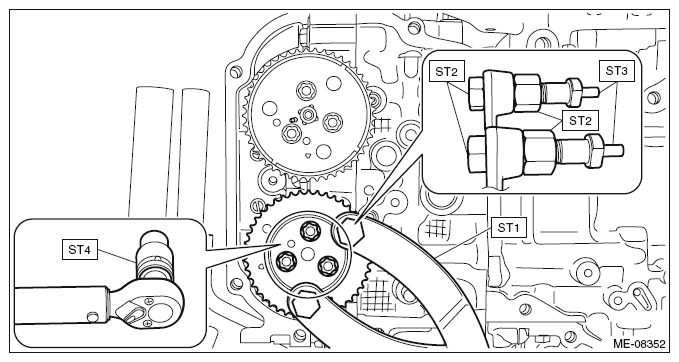

- Hold the exhaust cam sprocket RH using the ST1, ST2 and ST3, and install the bolts using the ST4.
ST1 18355AA000 PULLEY WRENCH
ST2 18334AA040 PULLEY WRENCH PIN SET
ST3 18334AA020 PULLEY WRENCH PIN SET
ST4 18270KA010 SOCKET
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the timing chain RH. Ref. to MECHANICAL(H4DO)>Timing Chain Assembly>INSTALLATION>TIMING CHAIN RH .
- Install the chain cover. Ref. to MECHANICAL(H4DO)>Chain Cover>INSTALLATION .
