Timing Chain RH

WARNING: This page is about a different variant/trim than selected.

NOTE:

Be careful that the foreign matter is not into or onto the assembled component during installation.
Apply engine oil to all component parts of the timing chain.

Install timing chain LH. Ref. to MECHANICAL(H4DO)>Timing Chain Assembly>INSTALLATION>TIMING CHAIN LH .
Prepare to attach the chain tensioner RH.
1. Move the link plate (A) in the direction of arrow to press in the plunger (B).

  Fig 1: Moving Link Plate
  Courtesy of SUBARU OF AMERICA, INC.

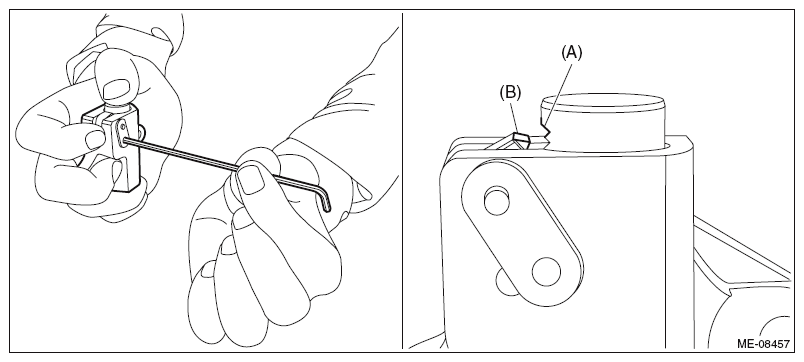

2. In order to secure the plunger, insert a stopper pin with a diameter of 2.5 mm (0.098 in) or a hex wrench with a diameter of 2.5 mm into the stopper pin hole.
  NOTE: If the stopper pin hole on the link plate and the stopper pin hole on the chain tensioner are not aligned, check that the first notch of plunger rack (A) is engaged with the stopper tooth (B). If not engaged, retract the plunger a little so that the first notch of plunger rack (A) is engaged with the stopper tooth (B).

  Fig 2: Inserting Stopper Pin
  Courtesy of SUBARU OF AMERICA, INC.

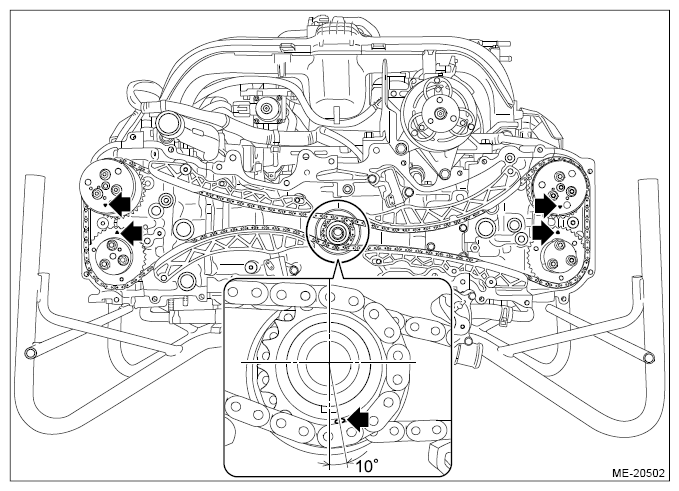

Make sure that the alignment marks of the crank sprocket, intake cam sprocket LH and exhaust cam sprocket LH are aligned to the positions as shown in the figure.

Fig 3: Locating Alignment Marks Of Crank Sprocket, Intake/Exhaust Cam Sprockets LH
Courtesy of SUBARU OF AMERICA, INC.

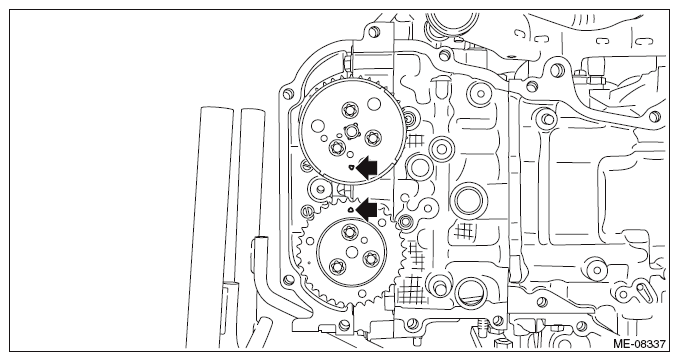

Align the alignment marks of intake cam sprocket RH and exhaust cam sprocket RH to the positions as shown in the figure.
CAUTION: To prevent valve damage, turn the intake cam sprocket RH and exhaust cam sprocket RH only within the range of zero-lift (in range where it can be turned lightly by hand).

Fig 4: Locating Alignment Marks Of Intake/Exhaust Cam Sprockets RH
Courtesy of SUBARU OF AMERICA, INC.

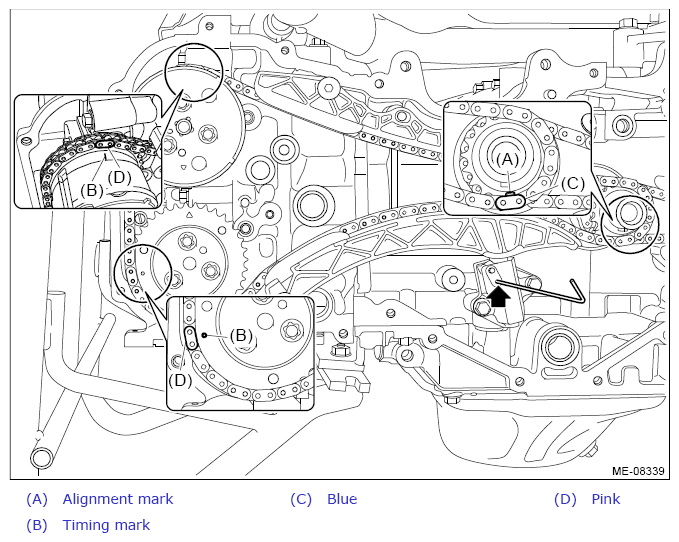

Install the timing chain RH and the timing chain guide RH.
1. Match the timing chain mark (blue) to the alignment mark of the crank sprocket.
2. Match the timing chain mark (pink) to the timing mark position of the intake cam sprocket RH.
3. Match the timing chain mark (pink) to the timing mark position of the exhaust cam sprocket RH.
4. Install the timing chain guide RH.
  Tightening torque:

  6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  Fig 5: Matching Timing Chain Mark (Blue) To Alignment Mark Of Crank Sprocket
  Courtesy of SUBARU OF AMERICA, INC.

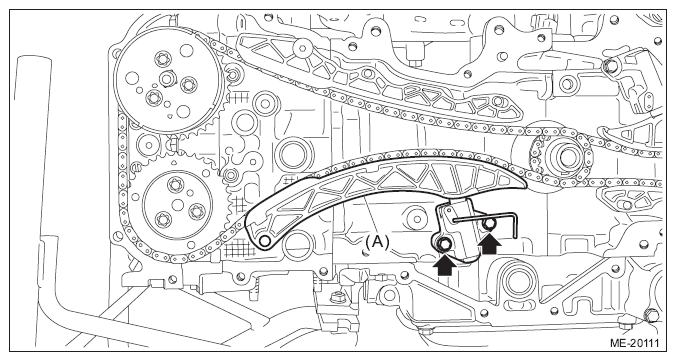

Install the chain tensioner lever RH (A) and chain tensioner RH.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 6: Locating Chain Tensioner RH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Pull out the stopper pin from the chain tensioner RH.
CAUTION:
Confirm the following before pulling out the stopper pin.
- Matching of the timing chain mark (blue) to the alignment mark of the crank sprocket.
- Matching of the timing chain mark (pink) to the timing mark position of the intake cam sprocket RH.
- Matching of the timing chain mark (pink) to the timing mark position of the exhaust cam sprocket RH.
Fig 7: Matching Timing Chain Mark (Pink) To Timing Mark Position Of Intake Cam Sprocket RH
Courtesy of SUBARU OF AMERICA, INC.

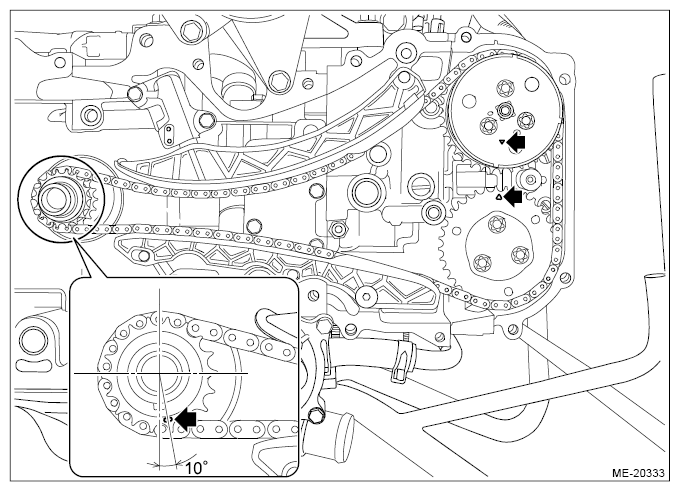

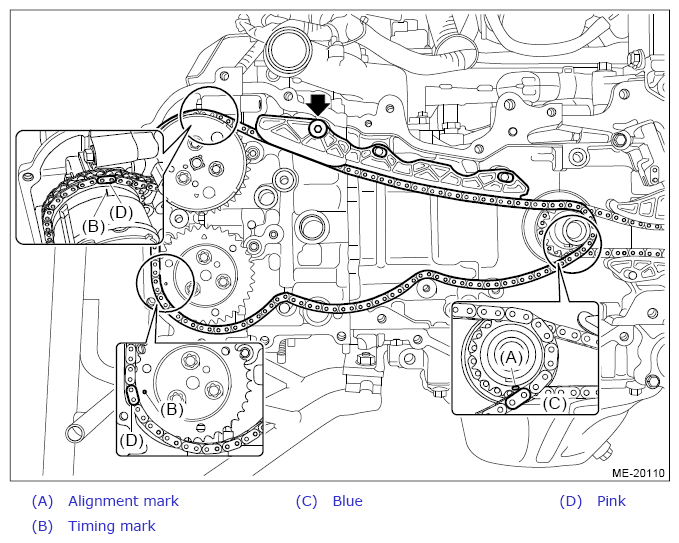

Make sure that the alignment marks of the cam sprocket and crank sprocket are aligned to the positions as shown in the figure.

Fig 8: Locating Alignment Marks Of Cam Sprocket And Crank Sprocket
Courtesy of SUBARU OF AMERICA, INC.

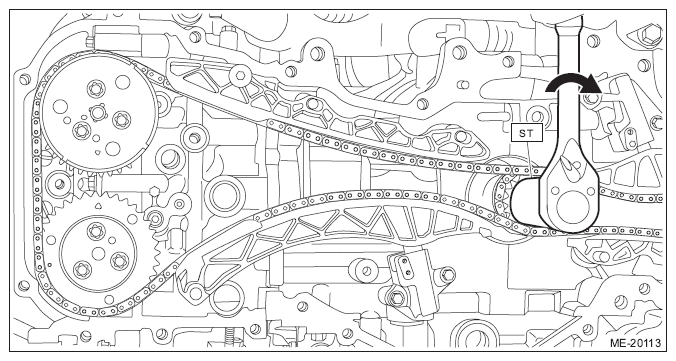

Using the ST, turn the crankshaft clockwise, and make sure that there are no abnormal conditions.
CAUTION: Always make sure to perform this confirmation.

ST 18252AA000 CRANKSHAFT SOCKET

Fig 9: Turning Crankshaft Clockwise Using ST
Courtesy of SUBARU OF AMERICA, INC.
Install the chain cover. Ref. to MECHANICAL(H4DO)>Chain Cover>INSTALLATION .
