Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Lift up (A) in two positions at the rear.
    2. Moving (B) in two positions at the front toward the vehicle, lift them up.
      Fig 1: Removing Collector Cover
      G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the under cover. Refer to REMOVAL .
  5. Drain the engine oil. Refer to REPLACEMENT .
  6. Drain engine coolant. Refer to DRAINING OF ENGINE COOLANT .
  7. Lower the vehicle.
  8. Remove the radiator. Refer to REMOVAL .
  9. Remove the V-belts. Refer to REMOVAL .
  10. Remove the crank pulley. Refer to REMOVAL .
  11. Remove the chain cover. Refer to REMOVAL .
  12. Remove the timing chain. Refer to REMOVAL .
  13. Remove the oil pan lower. Refer to REMOVAL .
  14. Remove the stiffener and the oil pump.

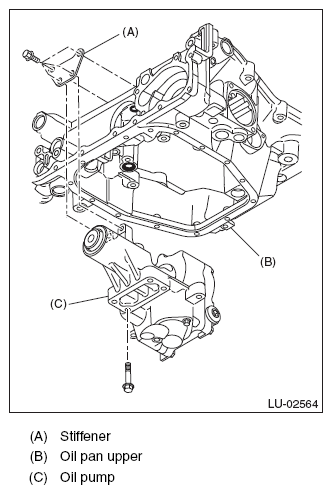

    Fig 2: Identifying Oil Pump And Stiffener
    G08581529Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the strainer from the oil pump.
  16. Remove the O-ring from oil pan upper.

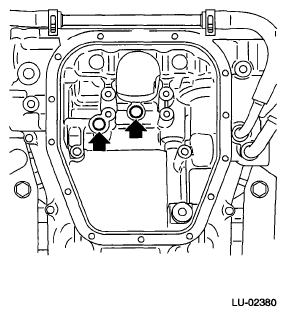

    Fig 3: Locating Oil Pan Upper O-Ring
    G05668068Courtesy of SUBARU OF AMERICA, INC.
