Reverse Idler Gear: Removal

  1. Remove the manual transmission assembly from the vehicle. Ref. to REMOVAL , Manual Transmission Assembly.
  2. Remove the back-up light switch neutral position switch. Ref. to REMOVAL , Switches and Harness.
  3. Remove the transfer case together with the extension case assembly. Ref. to REMOVAL , Transfer Case and Extension Case Assembly.
  4. Remove the transmission case. Ref. to REMOVAL , Transmission Case.
  5. Remove the drive pinion shaft assembly. Ref. to REMOVAL , Drive Pinion Shaft Assembly.
  6. Remove the main shaft assembly for single-range. Ref. to REMOVAL , Main Shaft Assembly for Single-Range.
  7. Remove the front differential assembly. Ref. to REMOVAL , Front Differential Assembly.
  8. Remove the shifter forks and rods. Ref. to REMOVAL , Shifter Fork and Rod.
  9. Pull out the straight pin, and remove the reverse idler gear shaft, washer, reverse idler gear and washer.

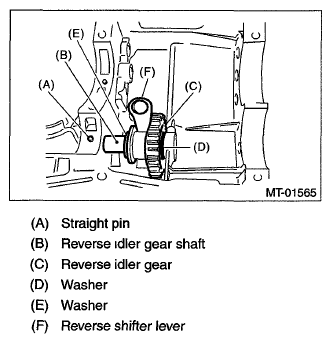

    Fig 1: Identifying Straight Pin, Reverse Idler Gear Shaft, Washer, Reverse Idler Gear And Washer
    G06338128Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the reverse shifter lever.
