Manual Transmission Assembly: Removal

Set the vehicle on a lift.
Open the front hood fully, and support with stay.
Disconnect the ground cable from the battery.
Drain transmission gear oil completely. Ref. to REPLACEMENT , Transmission Gear Oil.
Remove the air intake chamber and intake boot. (Non-turbo model) Ref. to REMOVAL , Air Intake Chamber.
Remove the air intake chamber stay. (Non-turbo model)

Fig 1: Identifying Air Intake Chamber Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. (Turbo model) Ref. to REMOVAL , Intercooler.
Disconnect the connector back-up light switch & neutral position switch.
- Non-turbo model

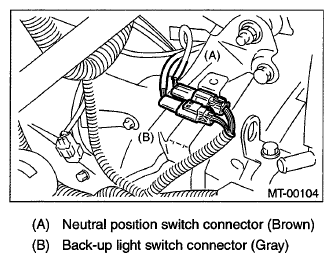

  Fig 2: Identifying Connector Back-Up Light Switch And Neutral Position Switch (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

  Fig 3: Identifying Connector Back-Up Light Switch And Neutral Position Switch (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable.

Fig 4: Identifying Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the starter. Ref. to REMOVAL , Starter.
Remove the operating cylinder from the transmission, and suspend on a wire.

Fig 5: Locating Operating Cylinder Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper.

Fig 6: Identifying Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Set the ST.
ST 41099AC000 ENGINE SUPPORT ASSY

Fig 7: Identifying ST 41099AC000 Engine Support Assembly
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the front and center exhaust pipes. (Non-turbo model) Ref. to REMOVAL , Center Exhaust Pipe.
Remove the center exhaust pipe. (Turbo model) Ref. to REMOVAL , Center Exhaust Pipe.
Remove the rear exhaust pipe and muffler.
- Non-turbo model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
- Turbo model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.

  CAUTION: When removing the exhaust pipes, be careful each exhaust pipe does not drop out.
Remove the bolts which hold upper side of transmission to engine.

Fig 8: Locating Upper Side Of Transmission Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the heat shield cover.

Fig 9: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the hanger bracket from the right side of transmission.

Fig 10: Identifying Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the propeller shaft. Ref. to REMOVAL , Propeller Shaft.
Remove the gear shift rod and the stay from the transmission.
1. Disconnect the stay from the transmission.
2. Remove the gear shift rod from the transmission.

  Fig 11: Identifying Gear Shift Rod And Stay
  Courtesy of SUBARU OF AMERICA, INC.
Remove the stabilizer link from the front arm.

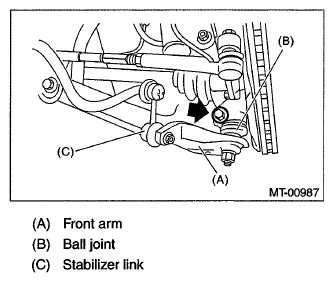

Fig 12: Locating Stabilizer Link
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt securing the ball joint of the front arm to the housing, then separate the front arms and the housing.

Fig 13: Locating Ball Joint Bolt
Courtesy of SUBARU OF AMERICA, INC.
Using a crowbar, remove the left and right front drive shaft from the transmission.

Fig 14: Removing Front Drive Shaft From Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts which hold lower side of transmission to engine.

Fig 15: Locating Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission jack under the transmission.
CAUTION: Always support the transmission case with a transmission jack.

Fig 16: Placing Transmission Jack Under Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the front crossmember and rear crossmember from the vehicle.

Fig 17: Locating Front Crossmember And Rear Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Tighten the turnbuckle of the ST while lowering the transmission jack, to tilt the engine assembly towards the back.
Remove the transmission.
NOTE: Move the transmission jack towards the rear until the main shaft is withdrawn from the clutch disc.
Separate the transmission assembly from the transmission cushion rubber.
