Drive Pinion Shaft Assembly: Removal

  1. Remove the manual transmission assembly from the vehicle. Ref. to REMOVAL , Manual Transmission Assembly.
  2. Remove the transfer case together with the extension case assembly. Ref. to REMOVAL , Transfer Case and Extension Case Assembly.
  3. Remove the transmission case. Ref. to REMOVAL , Transmission Case.
  4. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.

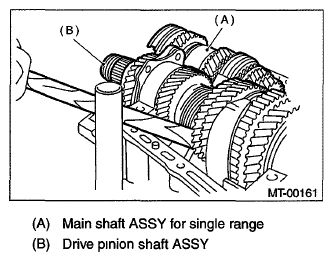

    Fig 1: Removing Drive Pinion Shaft Assembly
    G06338062Courtesy of SUBARU OF AMERICA, INC.
