Crank Sprocket: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. < Ref. to , REMOVAL , V-belt. >
  2. Remove the crank pulley. < Ref. to , REMOVAL , Crank Pulley. >
  3. Remove the timing belt cover. < Ref. to , REMOVAL , Timing Belt Cover. >
  4. Remove the timing belt. < Ref. to , REMOVAL , Timing Belt. >
  5. Remove the cam sprocket. < Ref. to , REMOVAL , Cam Sprocket. >
  6. Remove the crank sprocket.

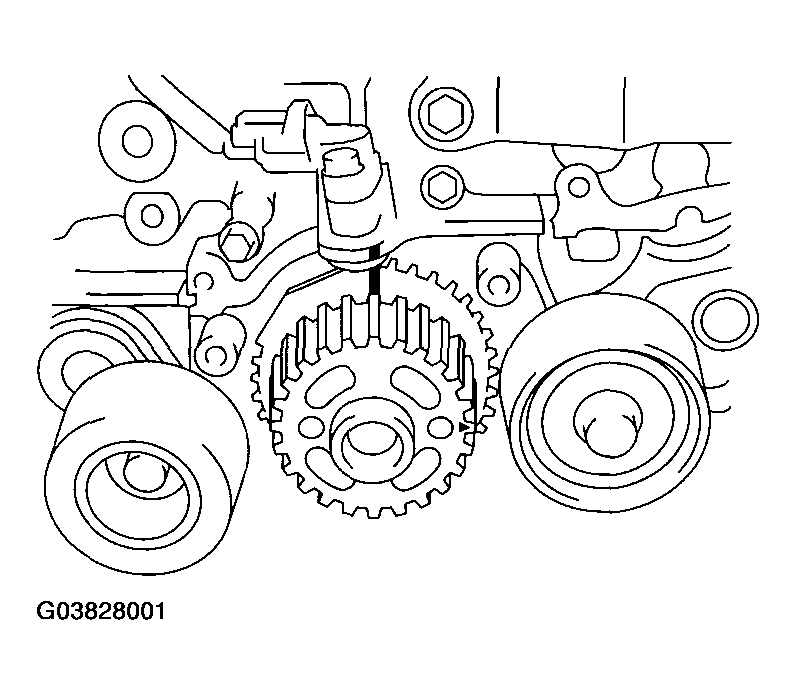

Fig 1: Removing Crank Sprocket
G03828001Courtesy of SUBARU OF AMERICA, INC.
