Timing Belt Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. < Ref. to , REMOVAL , V-belt. >
  2. Remove the crank pulley. < Ref. to , REMOVAL , Crank Pulley. >
  3. Remove the timing belt cover (LH).
  4. Remove the front timing belt cover.

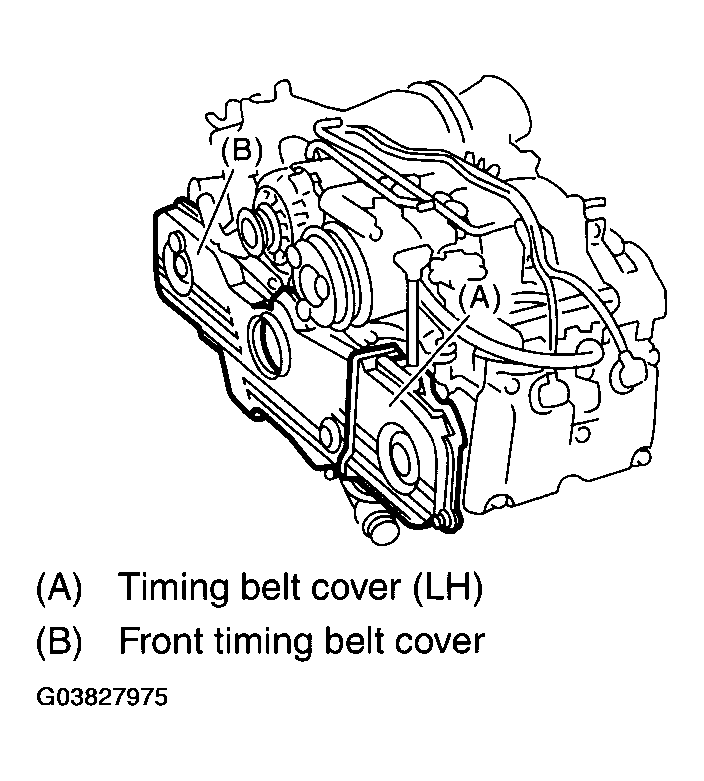

    Fig 1: Removing Front Timing Belt Cover
    G03827975Courtesy of SUBARU OF AMERICA, INC.
