Cam Sprocket: Removal

1. Remove the V-belts. < Ref. to , REMOVAL , V-belt. >
2. Remove the crank pulley. < Ref. to , REMOVAL , Crank Pulley. >
3. Remove the timing belt cover. < Ref. to , REMOVAL , Timing Belt Cover. >
4. Remove the timing belt. < Ref. to , REMOVAL , Timing Belt. >
5. Remove the camshaft position sensor. < Ref. to REMOVAL , Camshaft Position Sensor. >
6. Remove the cam sprocket No. 1 and 2. To lock the camshaft, use ST.

ST 18231AA010 CAM SPROCKET WRENCH

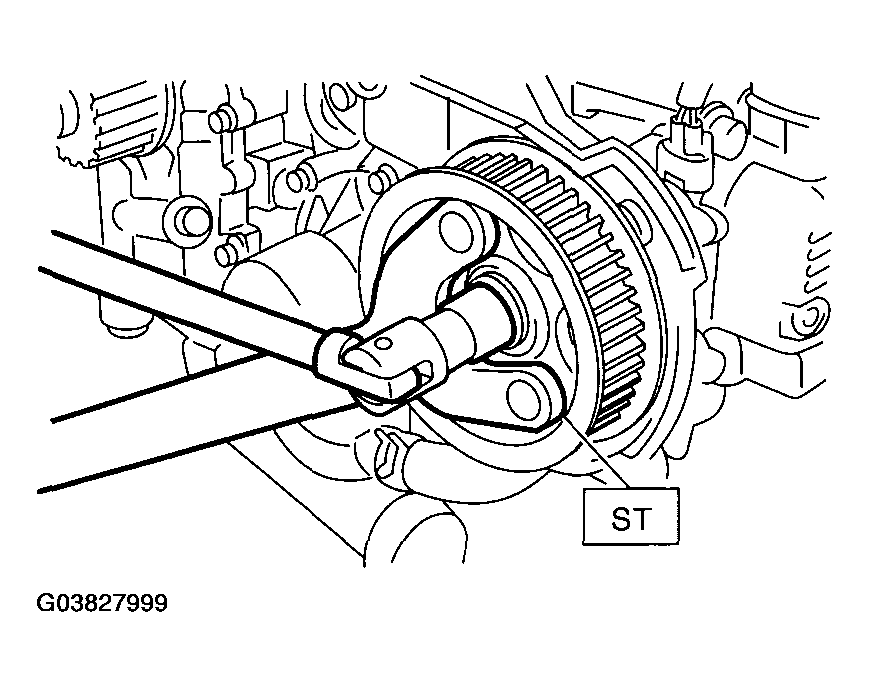

Fig 1: Removing Cam Sprocket Using Special Tool

Courtesy of SUBARU OF AMERICA, INC.
