Crank Pulley: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. < Ref. to , REMOVAL , V-belt. >
  2. Remove the crank pulley bolt. To lock the crankshaft, use ST.

    ST 499977100 CRANK PULLEY WRENCH

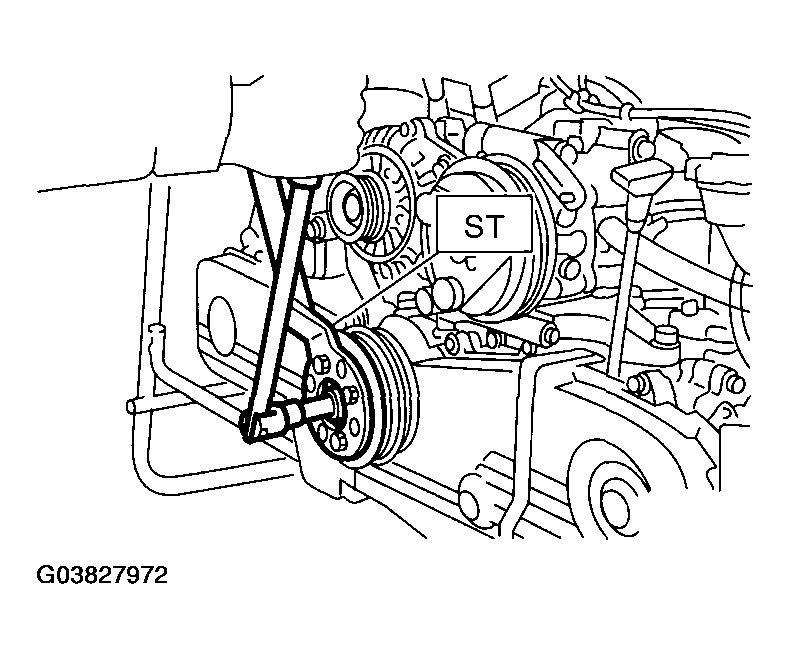

    Fig 1: Removing Crank Pulley Bolt Using Special Tool
    G03827972Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the crank pulley.
