Crank Sprocket: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the crank sprocket.

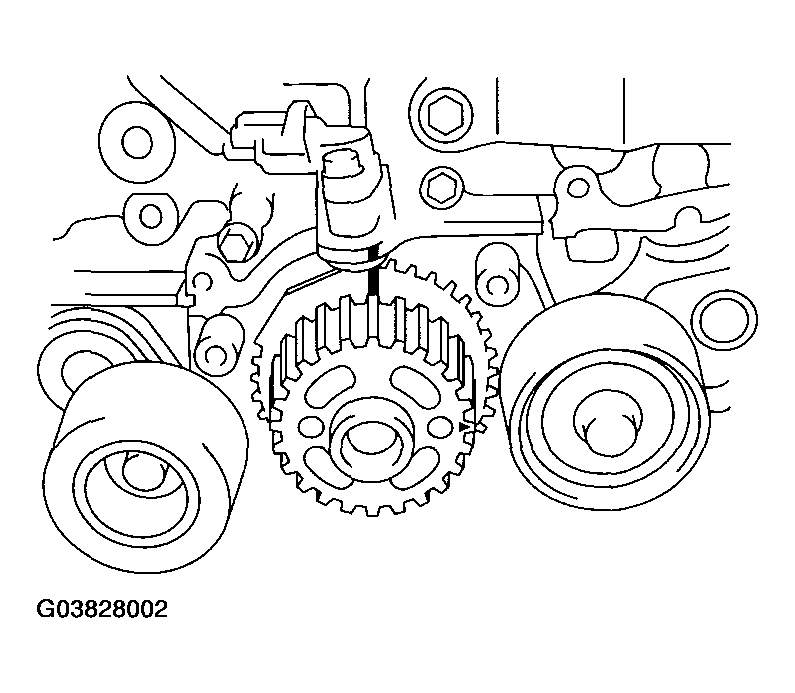

    Fig 1: Installing Crank Sprocket
    G03828002Courtesy of SUBARU OF AMERICA, INC.
  2. Install the cam sprocket. < Ref. to , INSTALLATION , Cam Sprocket. >
  3. Install the timing belt. < Ref. to , INSTALLATION , Timing Belt. >
  4. Install the timing belt cover.

    < Ref. to , INSTALLATION , Timing Belt Cover. >

  5. Install the crank pulley. < Ref. to , INSTALLATION , Crank Pulley. >
  6. Install the V-belts. < Ref. to , INSTALLATION , V-belt. >
