Cam Sprocket: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the cam sprocket No. 1 and 2. To lock the camshaft, use ST.

    ST 18231AA010 CAM SPROCKET WRENCH

    NOTE: CAM SPROCKET WRENCH (499207100) can also be used.

    Tightening torque:

    78 N.m (8.0 kgf-m, 57.9 ft-lb)

    NOTE: Do not confuse left and right side cam sprockets during installation. Cam sprocket No. 2 is identified by a protrusion used to monitor the camshaft position sensor.

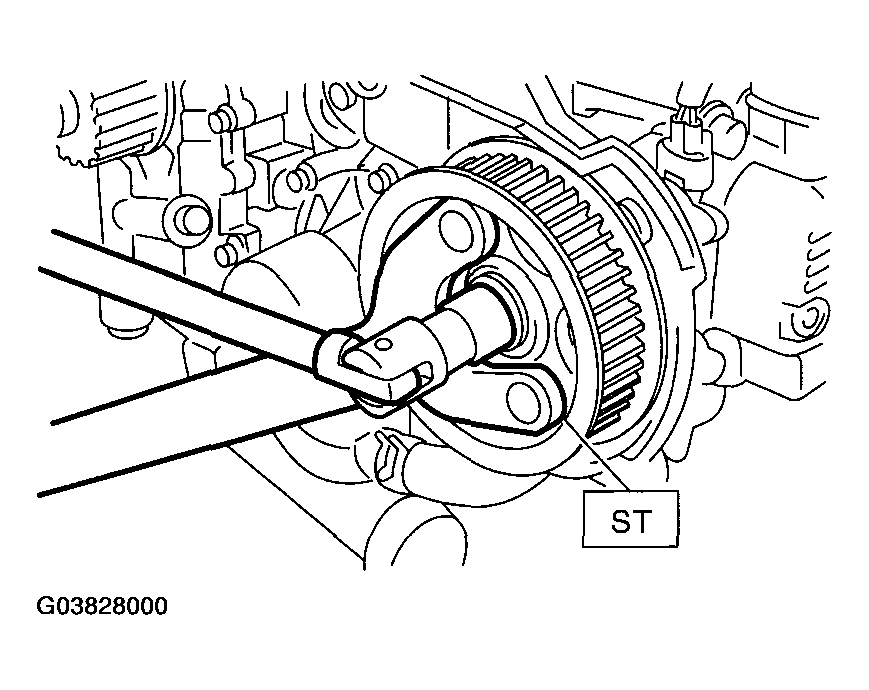

    Fig 1: Installing Cam Sprocket Using Special Tool
    G03828000Courtesy of SUBARU OF AMERICA, INC.
  2. Install the camshaft position sensor. < Ref. to INSTALLATION , Camshaft Position Sensor. >
  3. Install the timing belt. < Ref. to , INSTALLATION , Timing Belt. >
  4. Install the timing belt cover.

    < Ref. to , INSTALLATION , Timing Belt Cover. >

  5. Install the crank pulley. < Ref. to , INSTALLATION , Crank Pulley. >
  6. Install the V-belts. < Ref. to , INSTALLATION , V-belt. >
