Timing Belt Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Install the front timing belt cover.
Tightening torque:

5 N.m (0.5 kgf-m, 3.6 ft-lb)
Install the timing belt cover (LH).
Tightening torque:

5 N.m (0.5 kgf-m, 3.6 ft-lb)

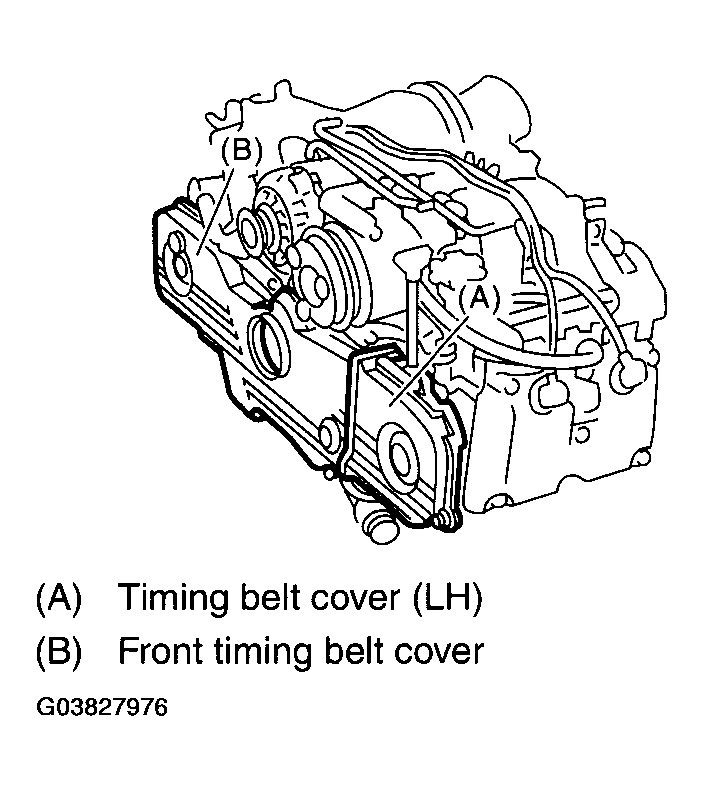

Fig 1: Installing Front Timing Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the crank pulley. < Ref. to , INSTALLATION , Crank Pulley. >
Install the V-belts. < Ref. to , INSTALLATION , V-belt. >
