Crank Pulley: Installation

WARNING: This page is about a different variant/trim than selected.

Install the crank pulley.
Install the pulley bolt.
To lock the crankshaft, use ST.

ST 499977100 CRANK PULLEY WRENCH
1. Clean the crankshaft thread using compressed air.
2. Apply engine oil to the crank pulley bolt seat and thread.
3. Tighten the bolts temporarily with tightening torque of 44 N.m (4.5 kgf-m, 33 ft-lb).
4. Tighten the crank pulley bolts.
Tightening torque:

180 N.m (18.3 kgf-m, 132.7 ft-lb)

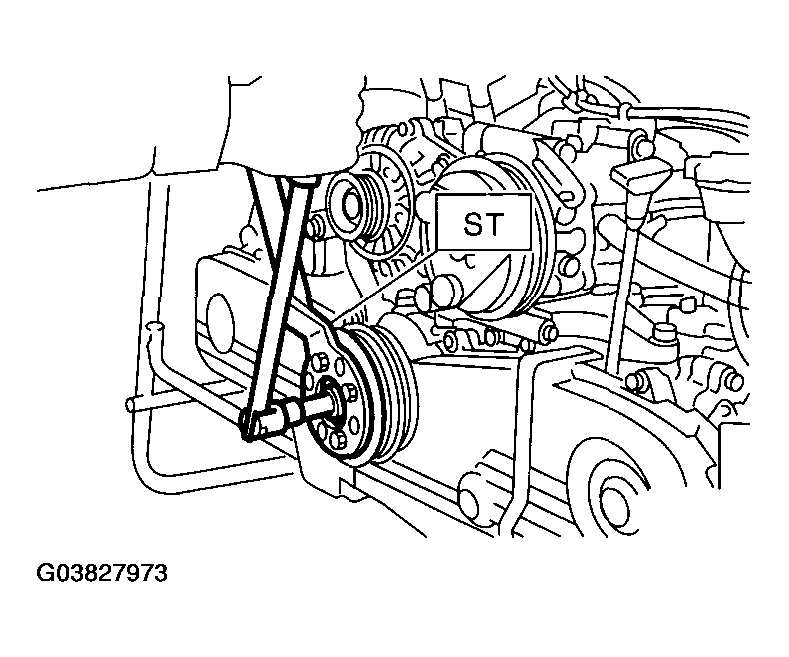

Fig 1: Installing Bolt Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Confirm that the tightening angle of crank pulley bolt is 65 degrees or more. If the tightening angle of crank pulley bolt is less than 65 degrees, conduct the following procedures.
1. Replace the crank pulley bolts and clean them.
  Crank pulley bolt:

  Part No. 12369AA011
2. Clean the crankshaft thread using compressed air.
3. Apply engine oil to the crank pulley bolt seal and thread.
4. Tighten the bolts temporarily with tightening torque of 44 N.m (4.5 kgf-m, 33 ft-lb).
5. Tighten the crank pulley bolts keeping them in an angle between 65 degrees and 75 degrees.
NOTE: Conduct the tightening procedures by confirming the turning angle of crank pulley bolt referring to the gauge indicated on timing belt cover.
Install the A/C belt tensioner.

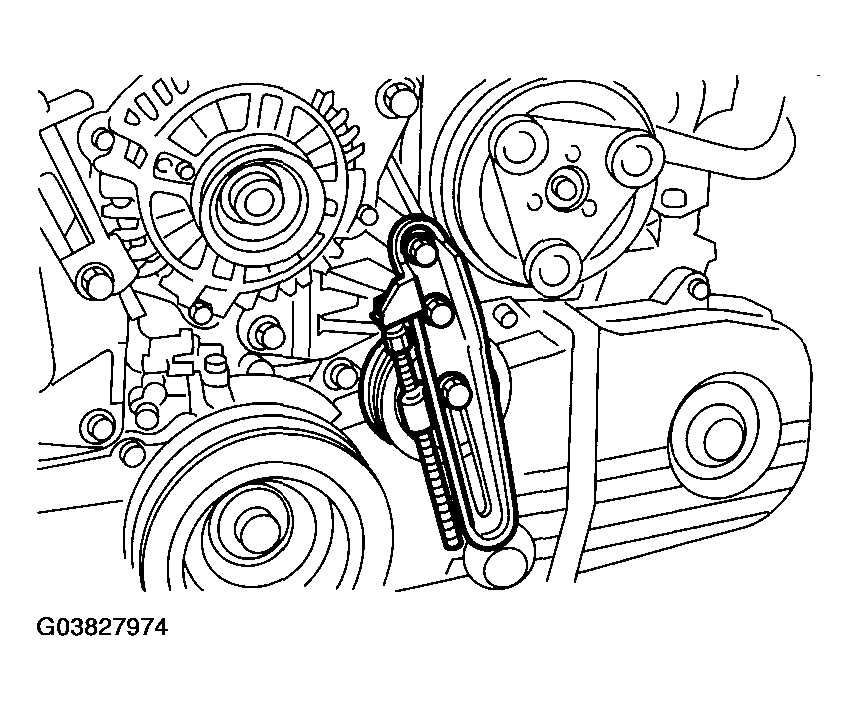

Fig 2: Installing A/C Belt Tensioner
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt. < Ref. to , INSTALLATION , V-belt. >
