CROSSMEMBER And Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Lift-up the vehicle.
  3. Remove the front exhaust pipe. (Non-turbo model) < Ref. to REMOVAL , Front Exhaust Pipe. >
  4. Remove the center exhaust pipe. (Turbo model) < Ref. to REMOVAL , Center Exhaust Pipe. >
  5. Remove the rear exhaust pipe and muffler. (Non-turbo model) < Ref. to REMOVAL , Rear Exhaust Pipe > & (Turbo model) < Ref. to REMOVAL , Muffler. >
  6. Remove the heat shield cover. (If equipped)
  7. Set the transmission jack under transmission body.
    CAUTION: Always support the transmission case with a transmission jack.
  8. Remove the rear crossmember.

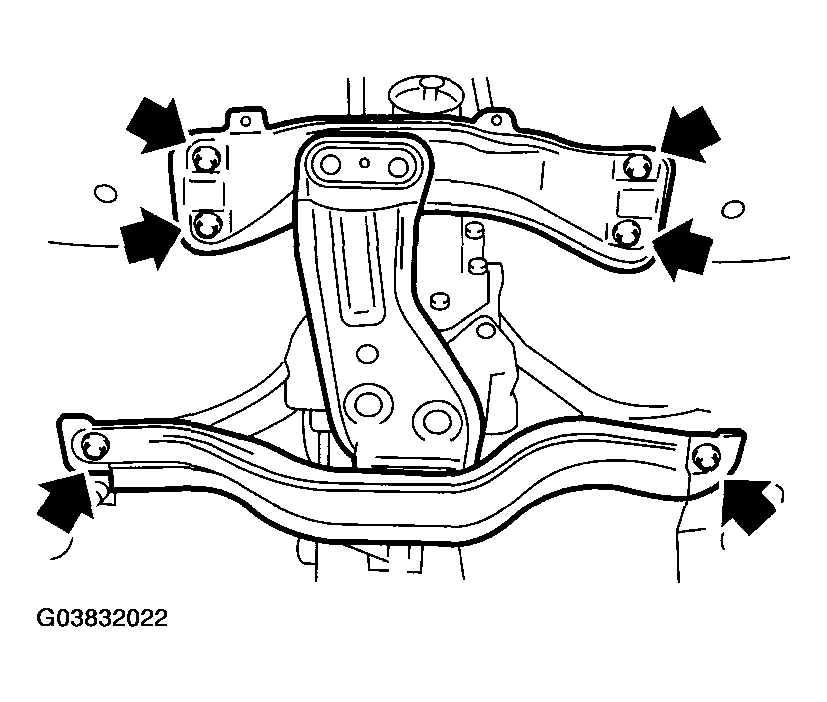

    Fig 1: Removing Rear Crossmember
    G03832022Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the rear cushion rubber.
