Front Exhaust Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery ground cable from battery.

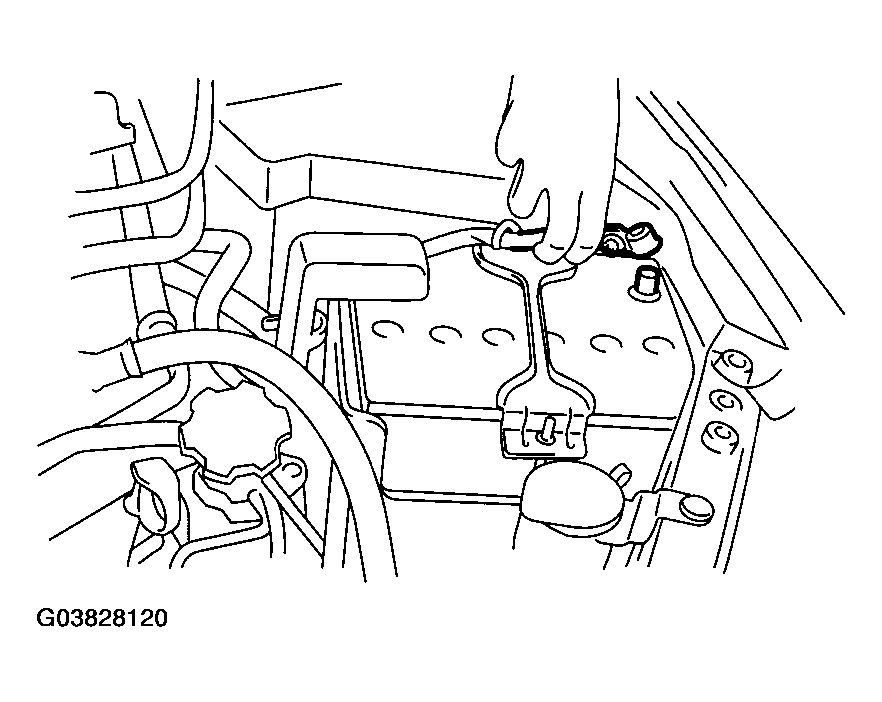

Fig 1: Disconnecting Battery Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the front oxygen (A/F) sensor connector.
NOTE: Remove the harness from bracket.

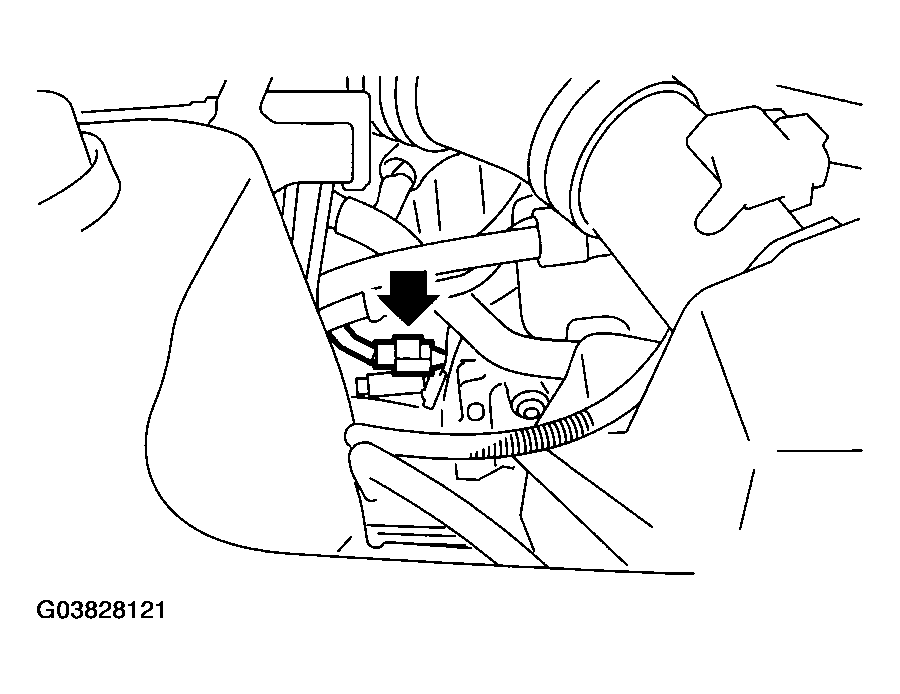

Fig 2: Disconnecting Front Oxygen (A/F) Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the rear oxygen sensor connector.

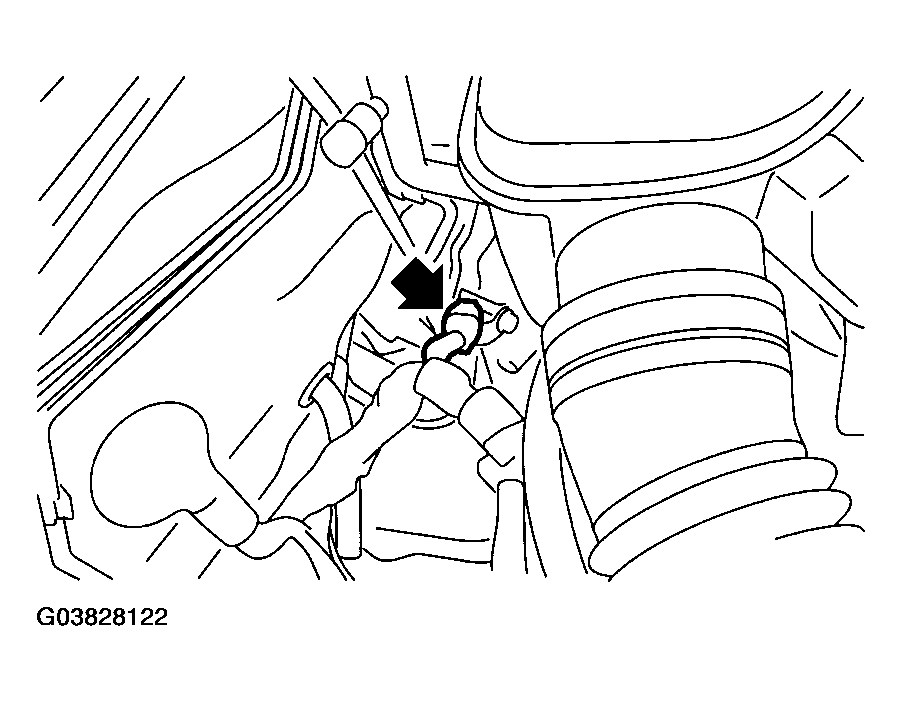

Fig 3: Disconnecting Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Separate the front and center exhaust pipe assembly from rear exhaust pipe.
WARNING: Be careful, exhaust pipe is hot.

Fig 4: Separating Front And Center Exhaust Pipe Assembly From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the under cover.
Remove the nuts which hold front exhaust pipe onto cylinder heads.
CAUTION: Be careful not to pull down front and center exhaust pipe assembly.

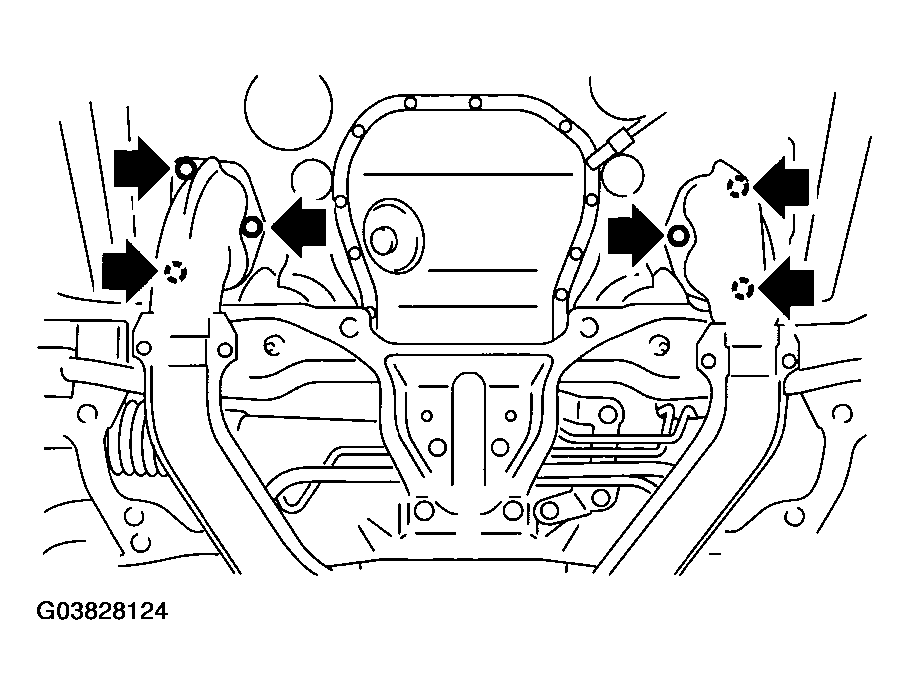

Fig 5: Removing Nuts Which Hold Front Exhaust Pipe Onto Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs front and center exhaust pipe assembly to hanger bracket.

Fig 6: Removing Bolt Form Front And Center Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the front and center exhaust pipe assembly from vehicle.
CAUTION:
- Be careful not to let front and center exhaust pipe assembly fall off when removing as it is quite heavy.
- After removing front and center exhaust assembly, do not apply excessive pulling force on rear exhaust pipe.
Separate the front exhaust pipe from center exhaust pipe.

Fig 7: Separating Front Exhaust Pipe From Center Exhaust Pipe

Courtesy of SUBARU OF AMERICA, INC.
