Center Exhaust Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Remove the collector cover.
Disconnect the ground cable from battery.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
Remove the intercooler bracket.

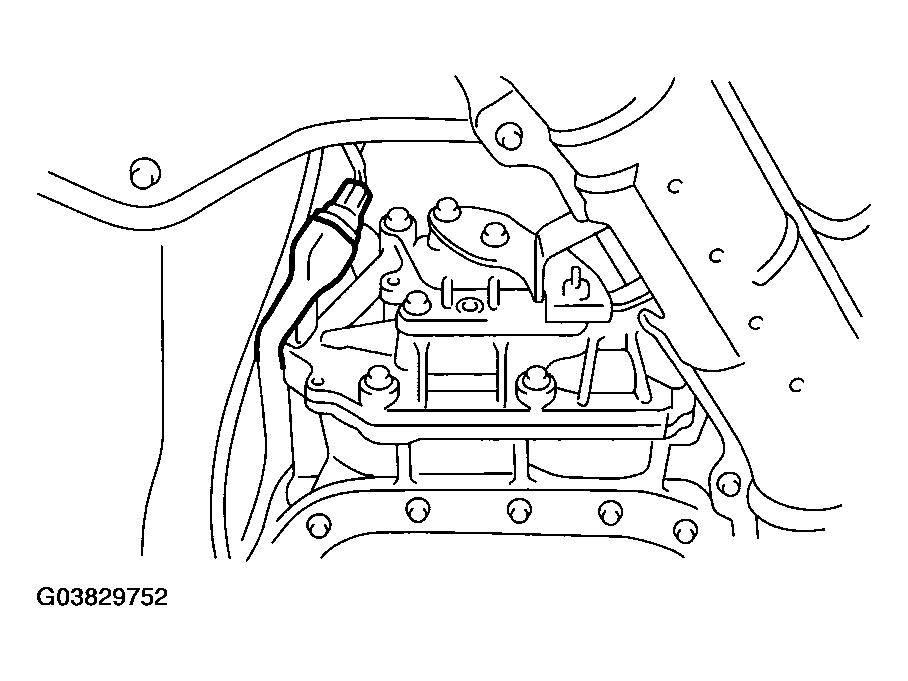

Fig 1: Removing Intercooler Bracket
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Remove the bolts which install lower side of turbocharger upper cover.
CAUTION: Be careful, the turbocharger and exhaust pipe are hot.

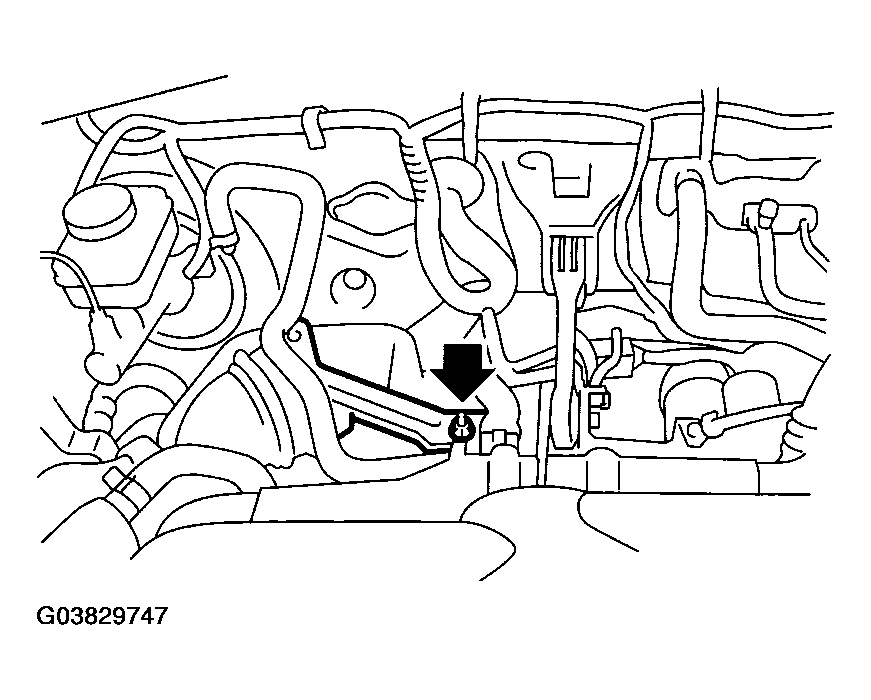

Fig 2: Removing Turbocharger Upper Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the turbocharger upper cover.

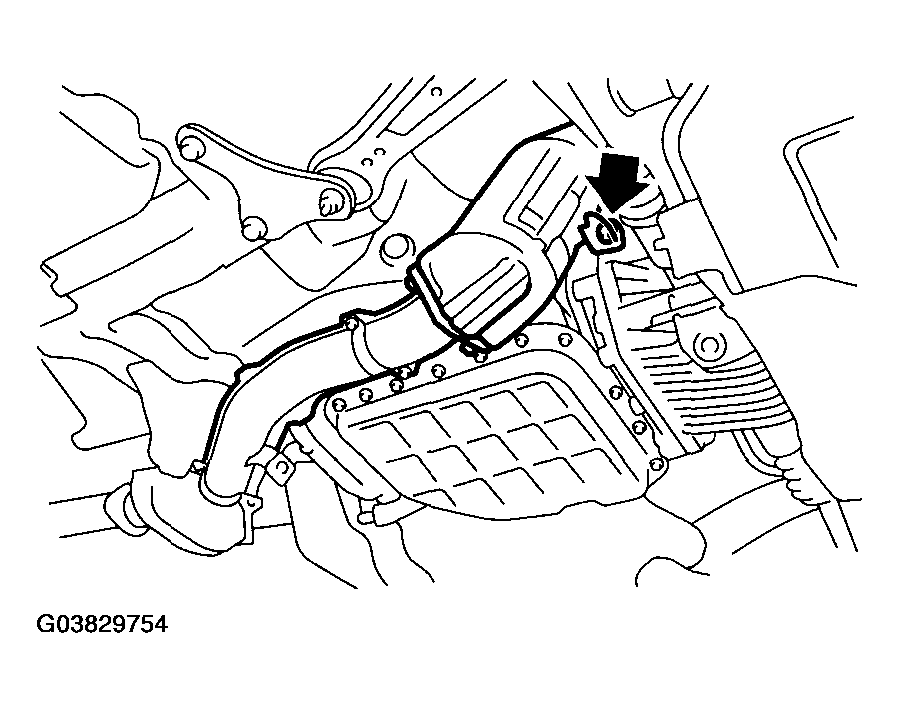

Fig 3: Removing Turbocharger Upper Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install upper side of turbocharger upper cover.

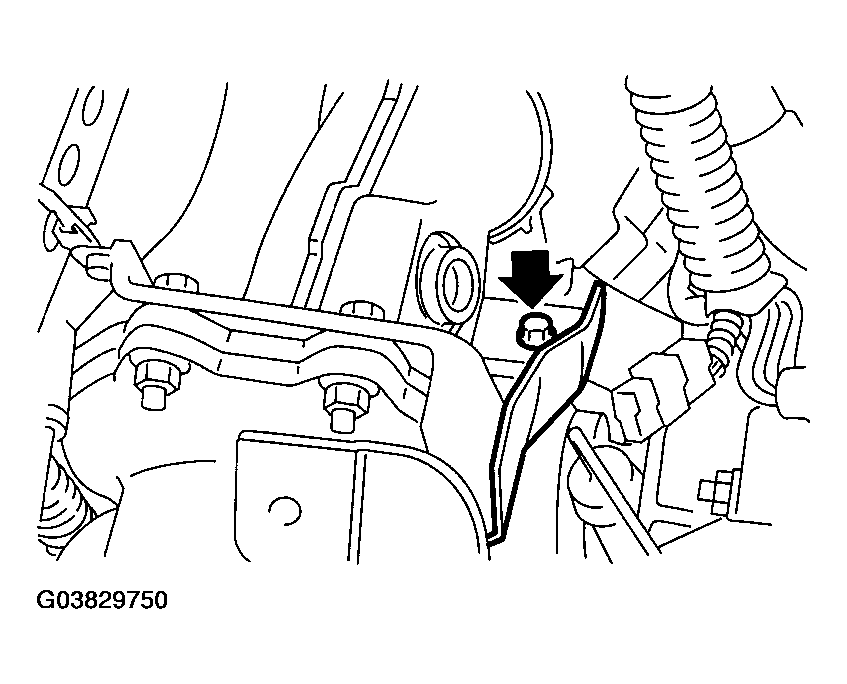

Fig 4: Removing Upper Side Of Turbocharger Upper Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Separate the center exhaust pipe from turbocharger.

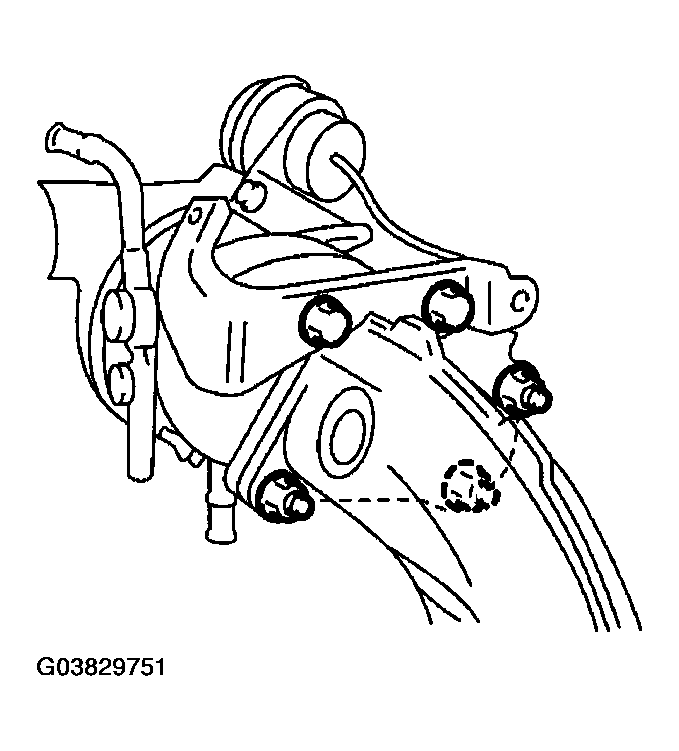

Fig 5: Separating Center Exhaust Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Disconnect the connector from rear oxygen sensor.

Fig 6: Disconnecting Connector From Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Separate the center exhaust pipe from rear exhaust pipe.

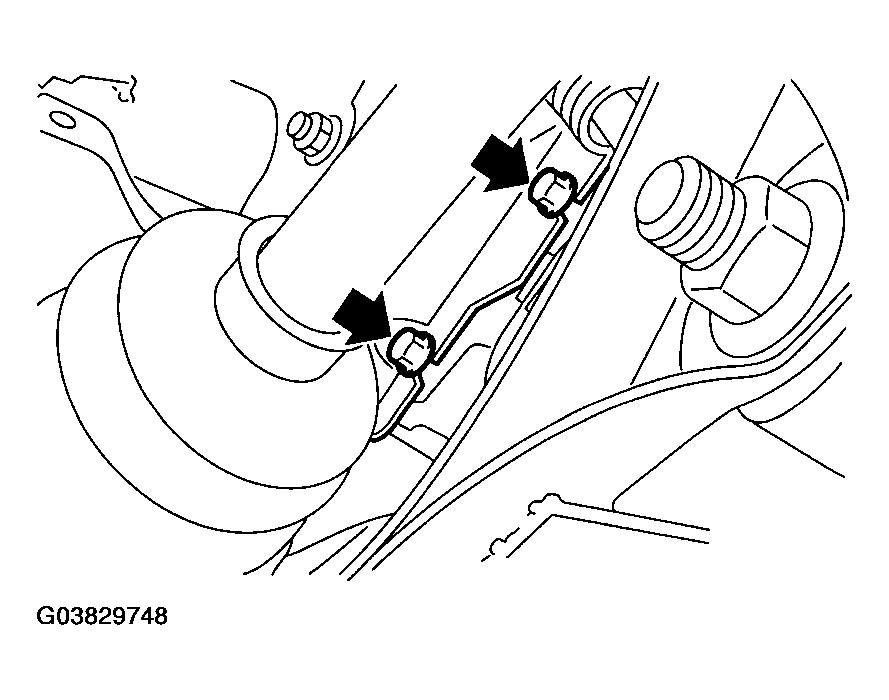

Fig 7: Separating Center Exhaust Pipe From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds center exhaust pipe bracket to transmission.

Fig 8: Removing Center Exhaust Pipe Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler bracket.
Remove the bolt which holds center exhaust pipe to hanger bracket.
CAUTION: Be careful not to pull down the center exhaust pipe.

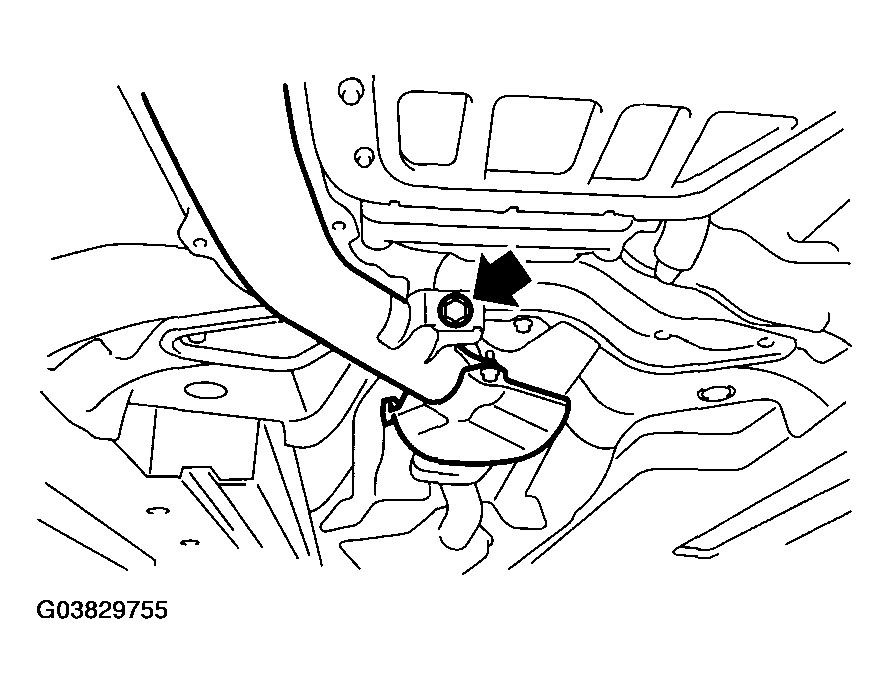

Fig 9: Removing Center Exhaust Pipe To Hanger Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe.

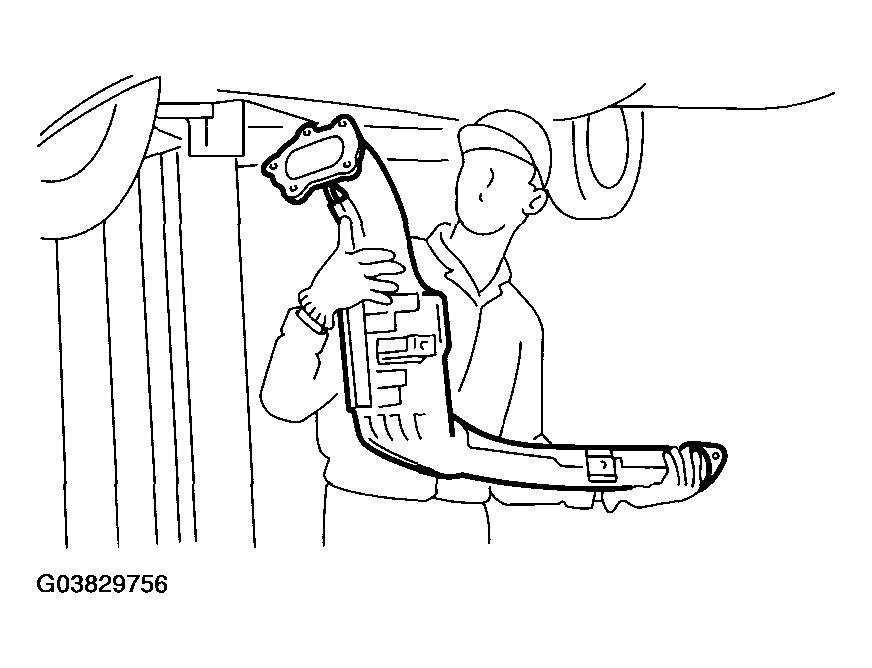

Fig 10: Removing Center Exhaust Pipe

Courtesy of SUBARU OF AMERICA, INC.
