CROSSMEMBER And Cushion Rubber
WARNING: This page is about a different variant/trim than selected.
- Install the rear cushion rubber.
Tightening torque:
35 N.m (3.6 kgf-m, 26 ft-lb)

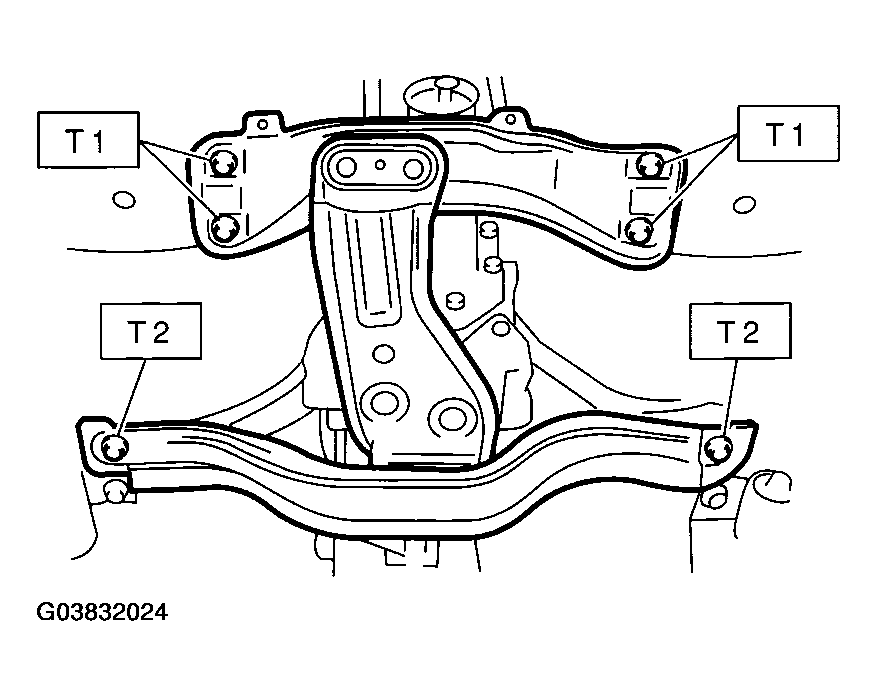

- Install the rear crossmember.
Tightening torque:
T1: 75 N.m (7.6 kgf-m, 55 ft-lb)
T2: 140 N.m (14.3 kgf-m, 103 ft-lb)
- Remove the transmission jack.
- Install the heat shield cover. (If equipped)
- Install the front exhaust pipe. (Non-turbo model). < Ref. to INSTALLATION , Front Exhaust Pipe. >
- Install the center exhaust pipe. (Turbo model) < Ref. to INSTALLATION , Center Exhaust Pipe. >
- Install the rear exhaust pipe and muffler. (Non-turbo model) < Ref. to INSTALLATION , Rear Exhaust Pipe > & (Turbo model) < Ref. to INSTALLATION , Muffler. >
- Lower the vehicle.
- Connect the battery ground cable to battery.
