Reverse Idler Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. < Ref. to , REMOVAL , Manual Transmission Assembly. >
  2. Remove the back-up light switch and neutral position switch. < Ref. to , REMOVAL , Switches and Harness. >
  3. Remove the transfer case with extension case assembly. < Ref. to , REMOVAL , Transfer Case and Extension Case Assembly. >
  4. Remove the transmission case. < Ref. to , REMOVAL , Drive Pinion Shaft Assembly. >
  5. Remove the drive pinion shaft assembly. < Ref. to , REMOVAL , Drive Pinion Shaft Assembly. >
  6. Remove the main shaft assembly.

    < Ref. to , REMOVAL , Main Shaft Assembly for Single-Range. >

  7. Remove the differential assembly. < Ref. to , REMOVAL , Front Differential Assembly. >
  8. Remove the shifter forks and rods. < Ref. to , REMOVAL , Shifter Fork and Rod. >
  9. Pull out the straight pin, and remove the idler gear shaft, reverse idler gear and washer.

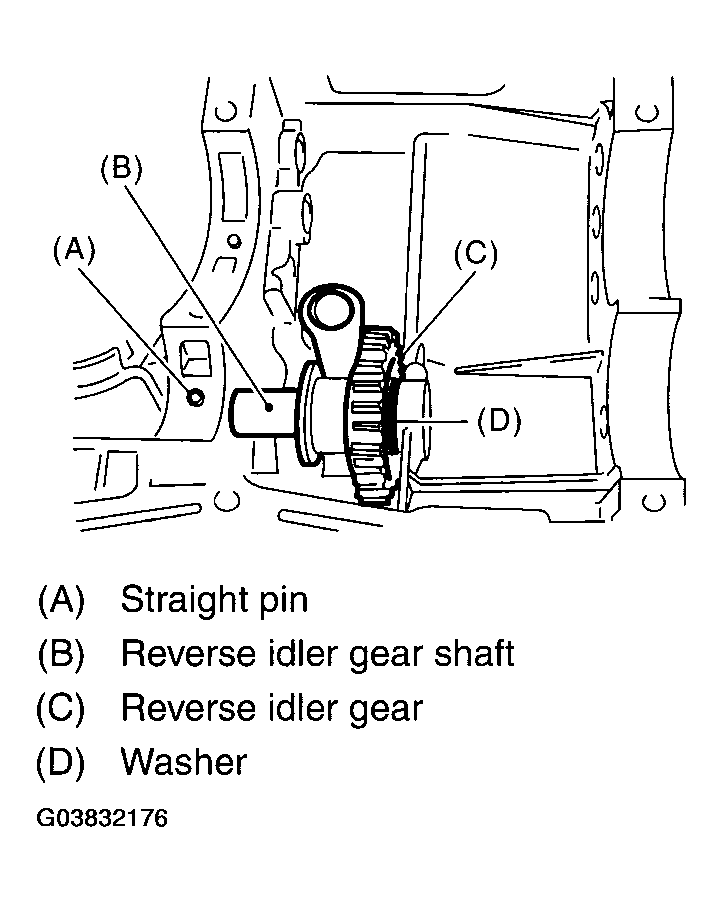

    Fig 1: Removing Idler Gear Shaft, Reverse Idler Gear And Washer
    G03832176Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the reverse shifter lever.
