Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. < Ref. to , REMOVAL , Manual Transmission Assembly. >
  2. Remove the back-up light switch and neutral position switch. < Ref. to , REMOVAL , Switches and Harness. >
  3. Remove the transfer case with extension case assembly.

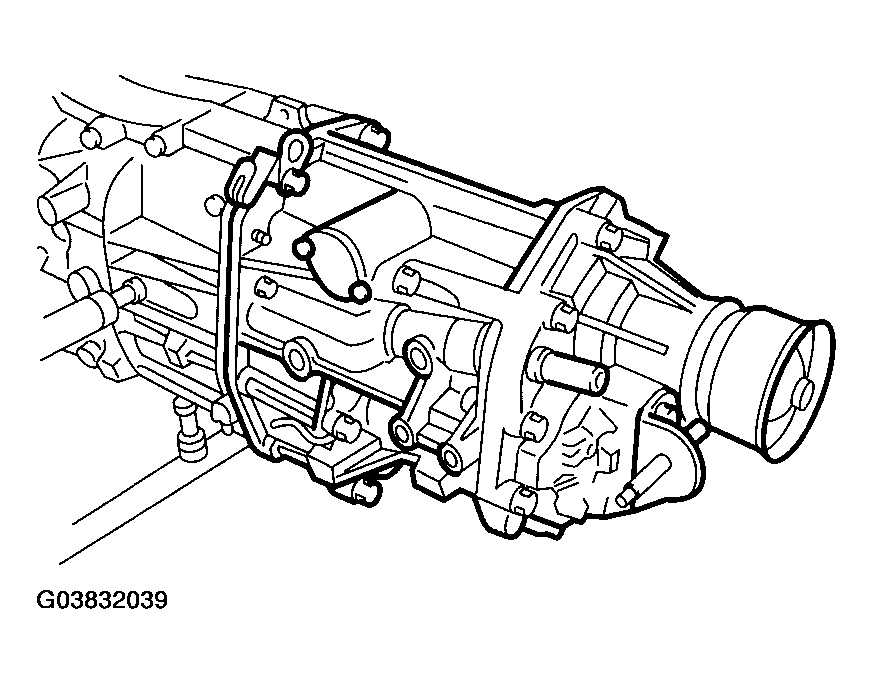

    Fig 1: Removing Transfer Case With Extension Case Assembly
    G03832039Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the shifter arm.
  5. Remove the extension case assembly.

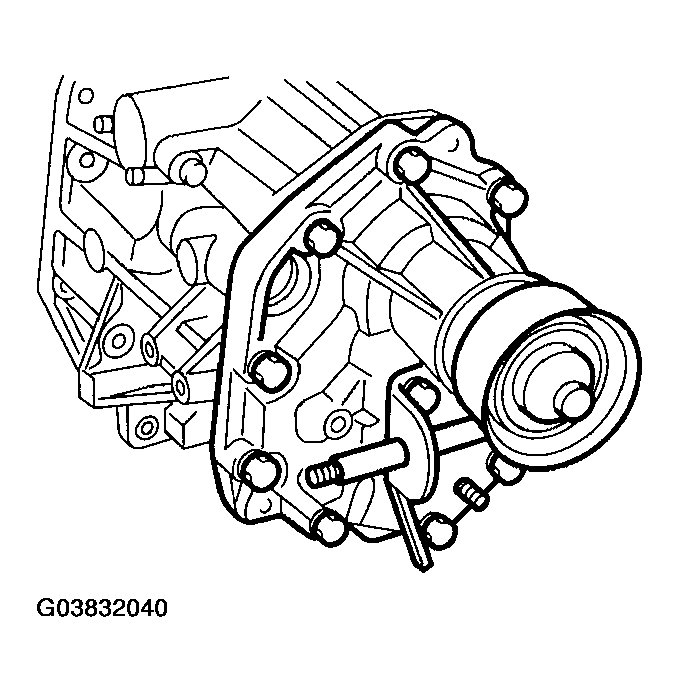

Fig 2: Removing Extension Case Assembly
G03832040Courtesy of SUBARU OF AMERICA, INC.
