Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. < Ref. to , REMOVAL , Manual Transmission Assembly. >
  2. Remove the transfer case with extension case assembly. < Ref. to , REMOVAL , Transfer Case and Extension Case Assembly. >
  3. Remove the transmission case. < Ref. to , REMOVAL , Transmission Case. >
  4. Remove the drive pinion shaft assembly.
NOTE: Use a hammer handle, etc. to remove if too tight.

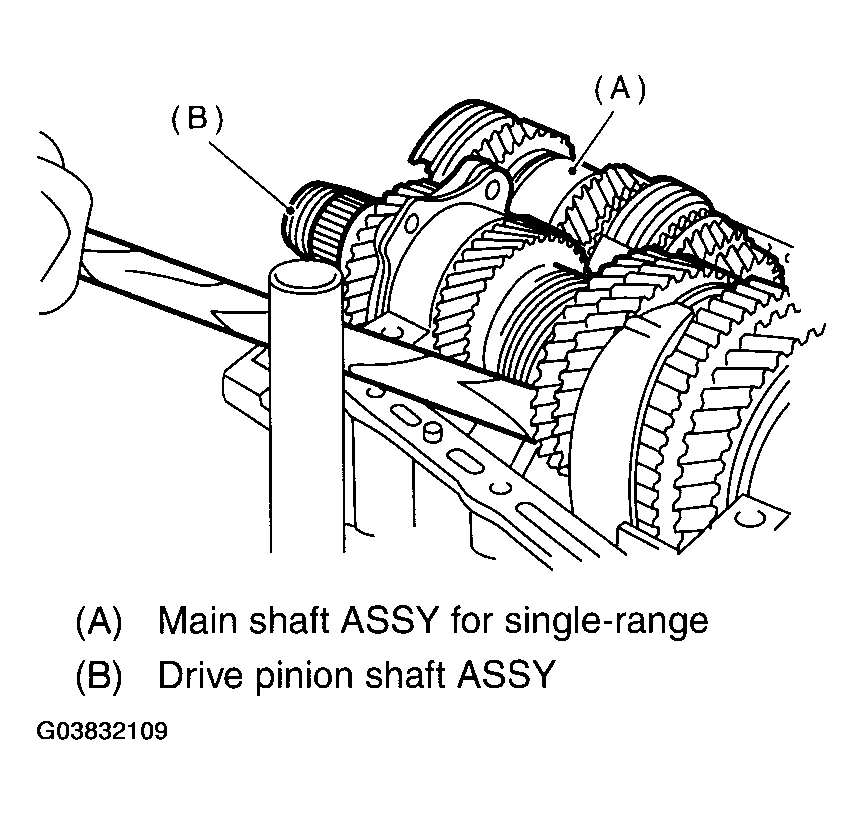

Fig 1: Removing Drive Pinion Shaft Assembly
G03832109Courtesy of SUBARU OF AMERICA, INC.
