Reverse Idler Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the reverse shifter lever, reverse idler gear and reverse idler gear shaft, and secure them with straight pin.
    NOTE: Be sure to install the reverse idler shaft from rear side.

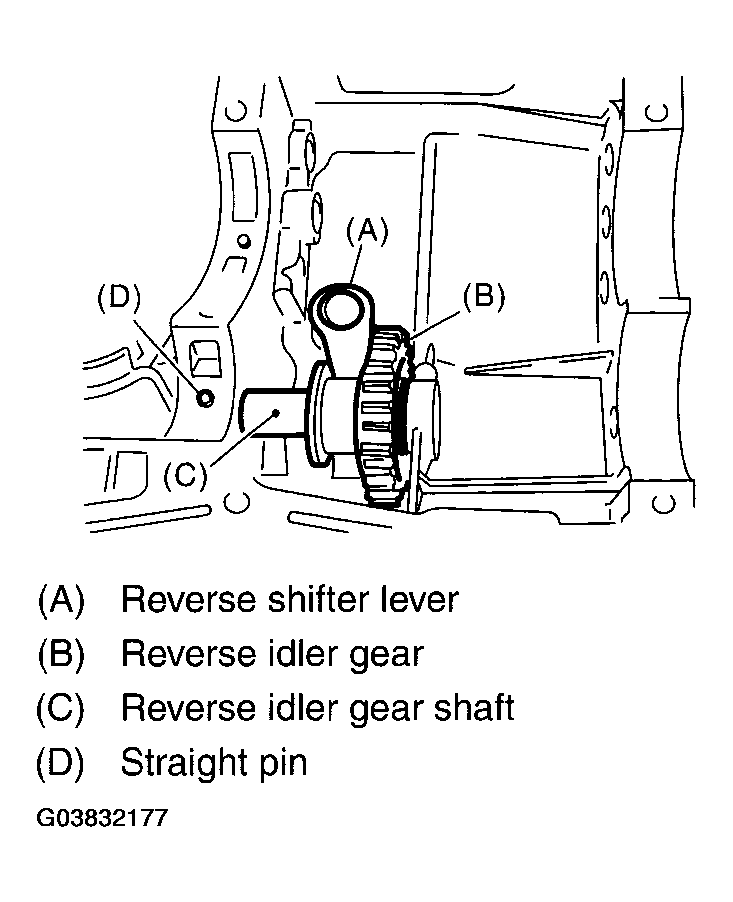

    Fig 1: Installing Reverse Shifter Lever, Reverse Idler Gear And Reverse Idler Gear Shaft
    G03832177Courtesy of SUBARU OF AMERICA, INC.
  2. Inspect and adjust the clearance between reverse idler gear and transmission case wall. < Ref. to , INSTALLATION , Reverse Idler Gear.> < Ref. to , ADJUSTMENT , Reverse Idler Gear. >
  3. Install the shifter forks and rods. < Ref. to , INSTALLATION , Shifter Fork and Rod. >
  4. Install the differential assembly. < Ref. to , INSTALLATION , Front Differential Assembly. >
  5. Install the main shaft assembly.

    < Ref. to , INSTALLATION , Main Shaft Assembly for Single-Range. >

  6. Install the drive pinion shaft assembly. < Ref. to , INSTALLATION , Drive Pinion Shaft Assembly. >
  7. Install the transmission case. < Ref. to , INSTALLATION , Transmission Case. >
  8. Install the transfer case with extension case assembly. < Ref. to , INSTALLATION , Transfer Case and Extension Case Assembly. >
  9. Install the back-up light switch and neutral position switch. < Ref. to , INSTALLATION , Switches and Harness. >
  10. Install the manual transmission assembly into vehicle. < Ref. to , INSTALLATION , Manual Transmission Assembly. >
