Front Differential Assembly: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the differential side retainers using ST.

    ST 499787000 WRENCH ASSY

  2. Install the bearing outer race on transmission case.
  3. Install the differential assembly.
    NOTE: Be careful not to fold the sealing lip of oil seal.

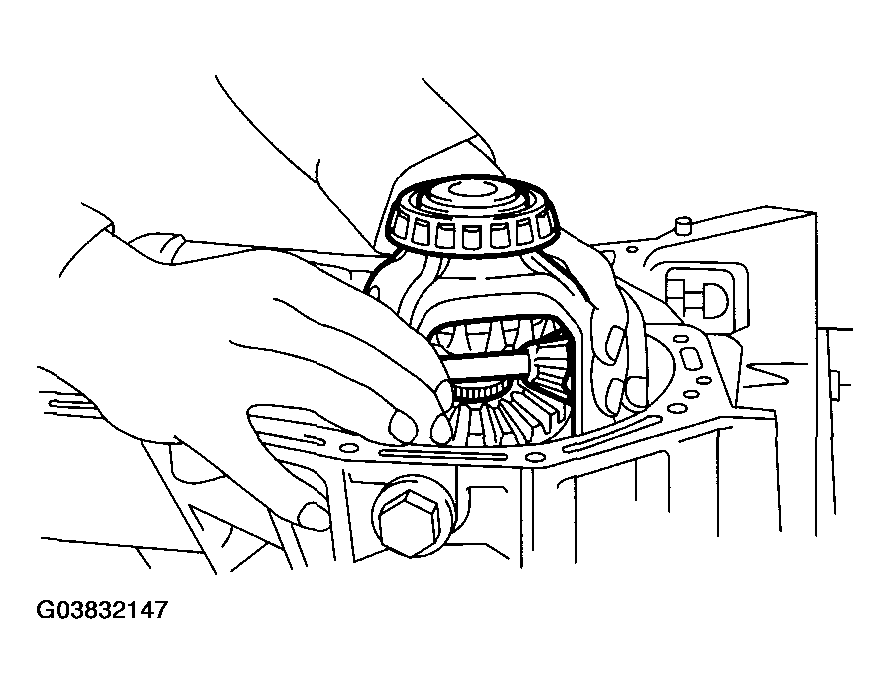

    Fig 1: Installing Differential Assembly
    G03832147Courtesy of SUBARU OF AMERICA, INC.
  4. Install the main shaft assembly.

    < Ref. to , INSTALLATION , Main Shaft Assembly for Single-Range. >

  5. Install the drive pinion assembly. < Ref. to , INSTALLATION , Drive Pinion Shaft Assembly. >
  6. Install the transmission case. < Ref. to , INSTALLATION , Transmission Case. >
  7. Install the transfer case with extension case assembly. < Ref. to , INSTALLATION , Transfer Case and Extension Case Assembly. >
  8. Install the manual transmission assembly into vehicle. < Ref. to , INSTALLATION , Manual Transmission Assembly. >
