Section 17 (Engine Mechanical (H4DOTC)): Camshaft: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the V-belts. < Ref. to , REMOVAL , V-belt. >
Remove the crank pulley. < Ref. to , REMOVAL , Crank Pulley. >
Remove the timing belt cover.
< Ref. to , REMOVAL , Timing Belt Cover. >
Remove the timing belt. < Ref. to , REMOVAL , Timing Belt. >
Remove the cam sprocket. < Ref. to , REMOVAL , Cam Sprocket. >
Remove the crank sprocket. < Ref. to , REMOVAL , Crank Sprocket. >

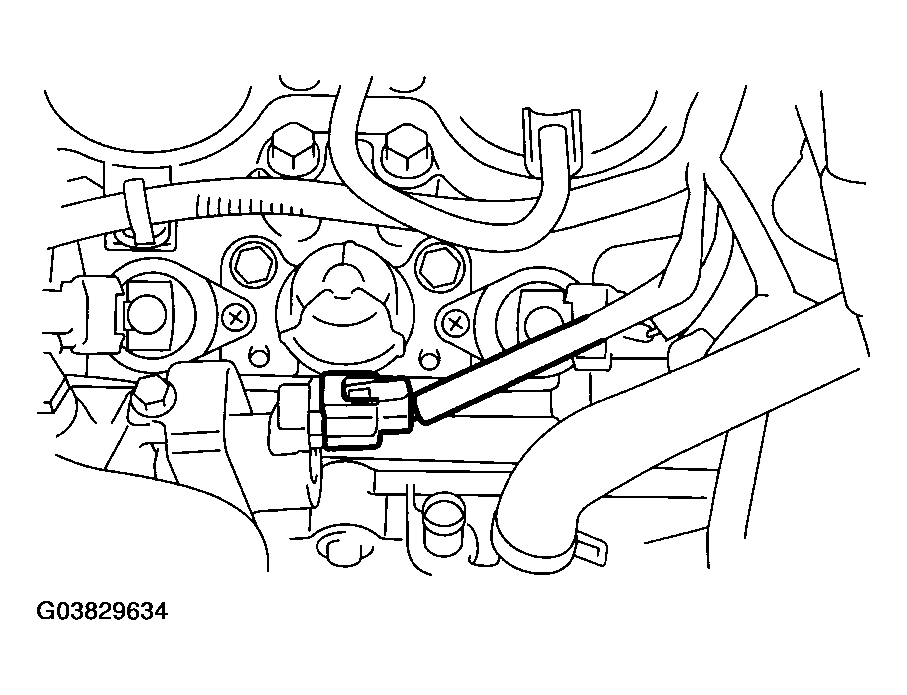

Disconnect the oil flow control solenoid valve assembly connector.

Fig 1: Disconnecting Oil Flow Control Solenoid Valve Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.

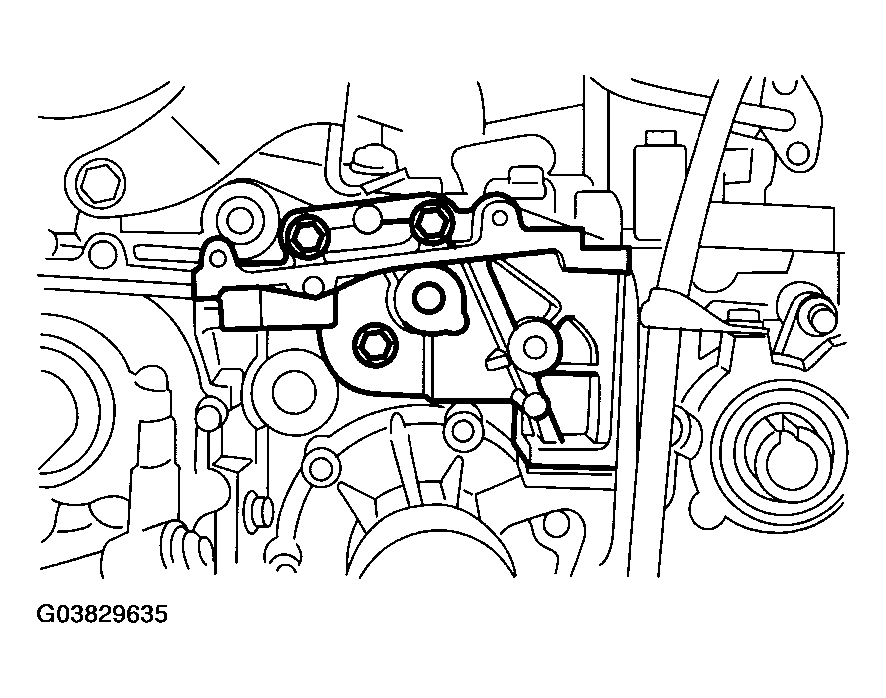

Remove the tensioner bracket.

Fig 2: Removing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.

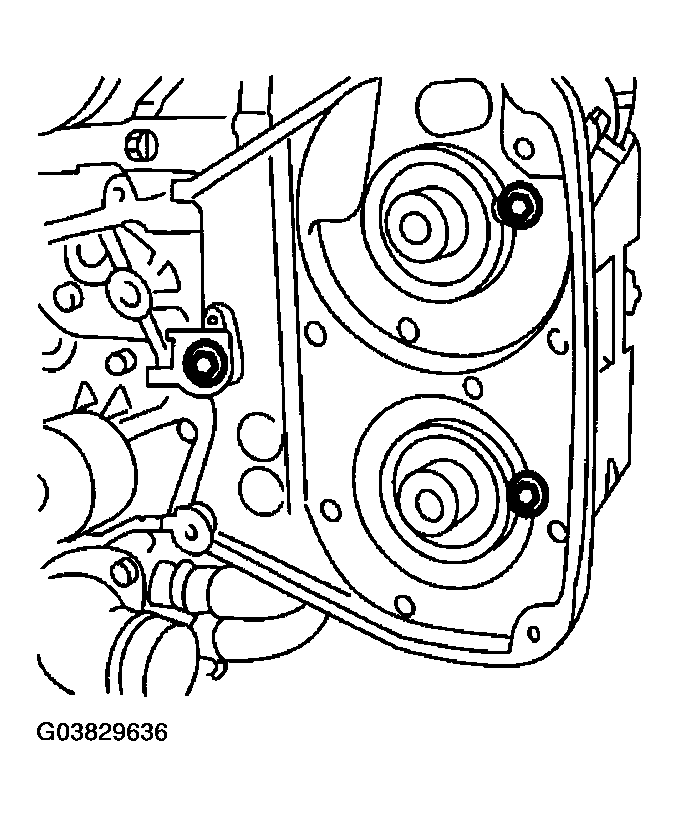

Remove the timing belt cover No. 2 (LH).

Fig 3: Removing Timing Belt Cover No. 2 (LH)
Courtesy of SUBARU OF AMERICA, INC.

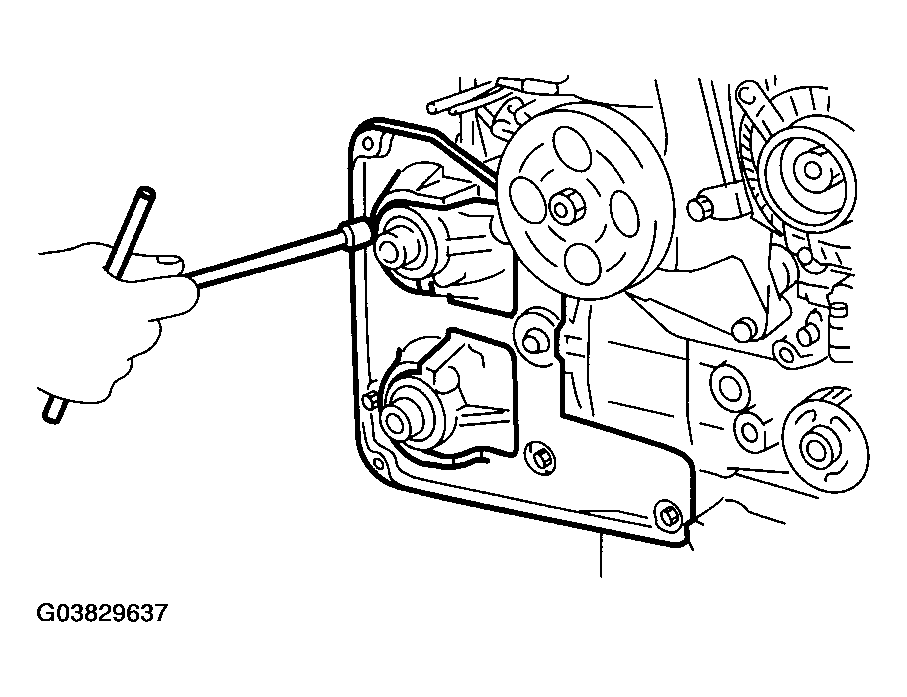

Remove the timing belt cover No. 2 (RH).

Fig 4: Removing Timing Belt Cover No. 2 (RH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plug cords.
Remove the oil level gauge guide. (LH side)
Remove the rocker cover and gasket.

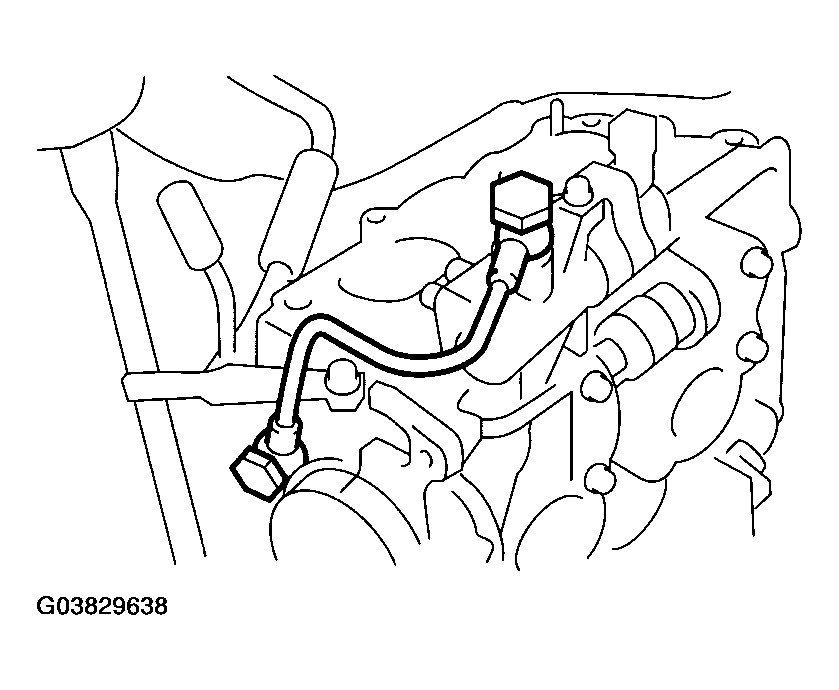

Remove the oil pipe.

Fig 5: Removing Oil Pipe
Courtesy of SUBARU OF AMERICA, INC.

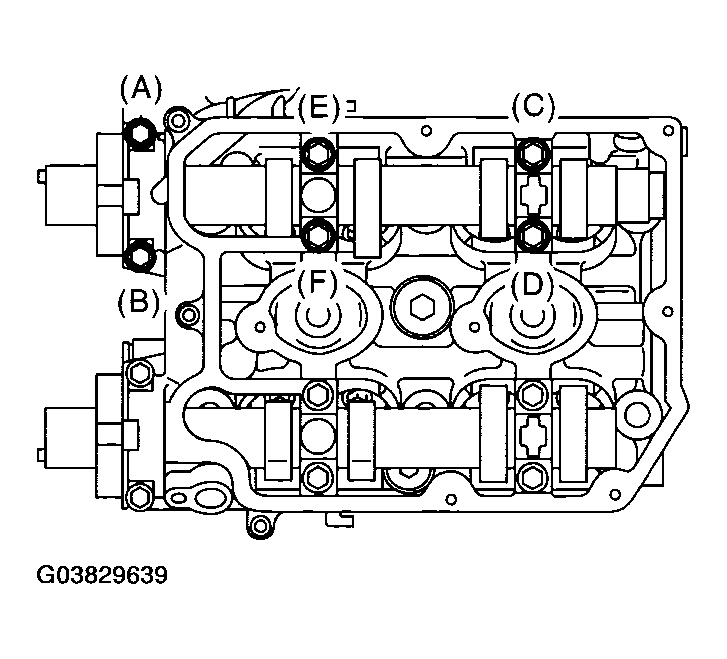

Loosen the oil flow control solenoid valve assembly and intake camshaft cap bolts equally, a little at a time in alphabetical sequence shown in Fig 6 .

Fig 6: Identifying Intake Camshaft Cap Bolts
Courtesy of SUBARU OF AMERICA, INC.

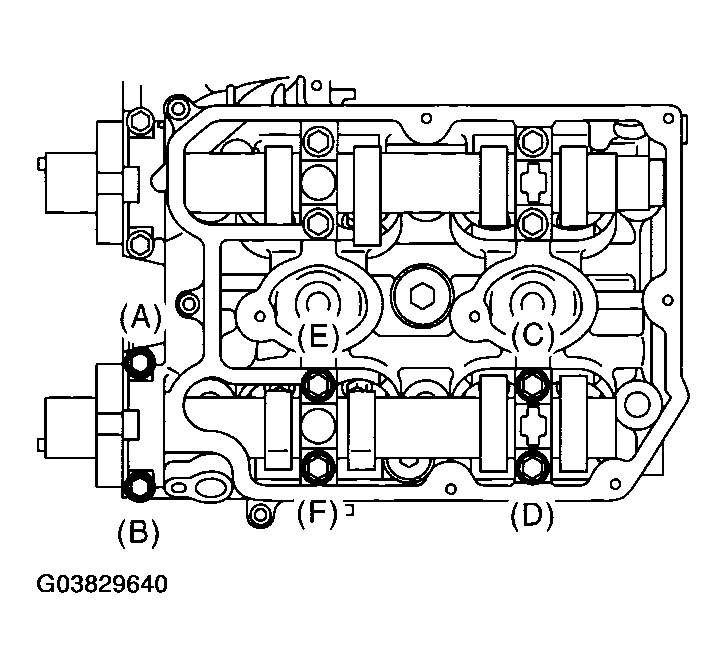

Loosen the exhaust camshaft cap bolts equally, a little at a time in alphabetical sequence shown in Fig 7 .

Fig 7: Loosening Exhaust Camshaft Cap Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil flow control solenoid valve assembly, intake camshaft cap and camshaft.
Remove the exhaust camshaft caps and camshaft.
NOTE: Arrange camshaft caps in order so that they can be installed in their original positions.
Similarly, remove the camshafts (RH) and related parts.
