Crank Sprocket: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. < Ref. to , REMOVAL , V-belt. >
  2. Remove the crank pulley.

    < Ref. to , REMOVAL , Crank Pulley. >

  3. Remove the timing belt cover.

    < Ref. to , REMOVAL , Timing Belt Cover. >

  4. Remove the timing belt.

    < Ref. to , REMOVAL , Timing Belt. >

  5. Remove the cam sprocket.

    < Ref. to , REMOVAL , Cam Sprocket. >

  6. Remove the crank sprocket.

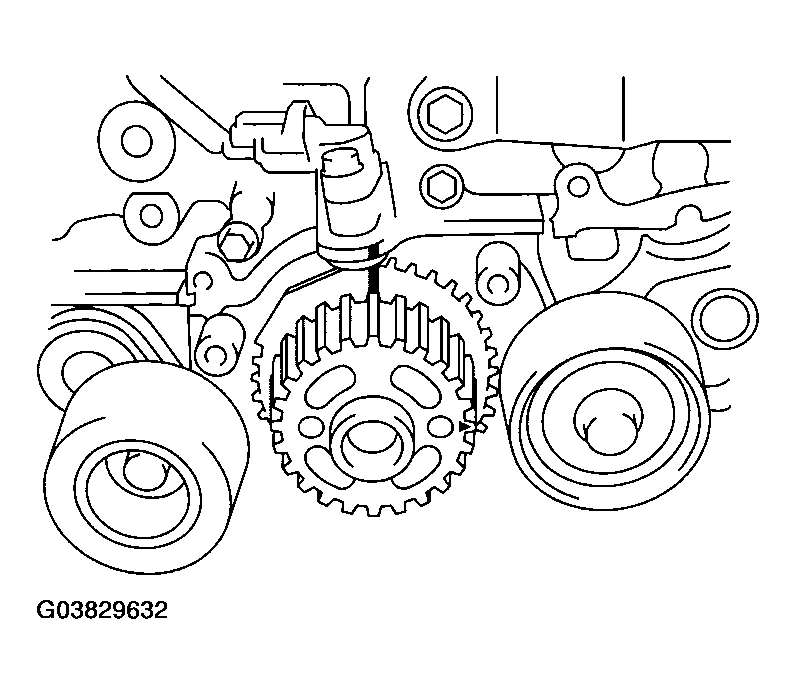

Fig 1: Removing Crank Sprocket
G03829632Courtesy of SUBARU OF AMERICA, INC.
