Timing Belt Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. < Ref. to , REMOVAL , V-belt>
  2. Remove the crank pulley.

    < Ref. to , REMOVAL , Crank Pulley. >

  3. Remove the timing belt cover (LH) (A).
  4. Remove the timing belt cover (RH) (B).
  5. Remove the front timing belt cover (C).

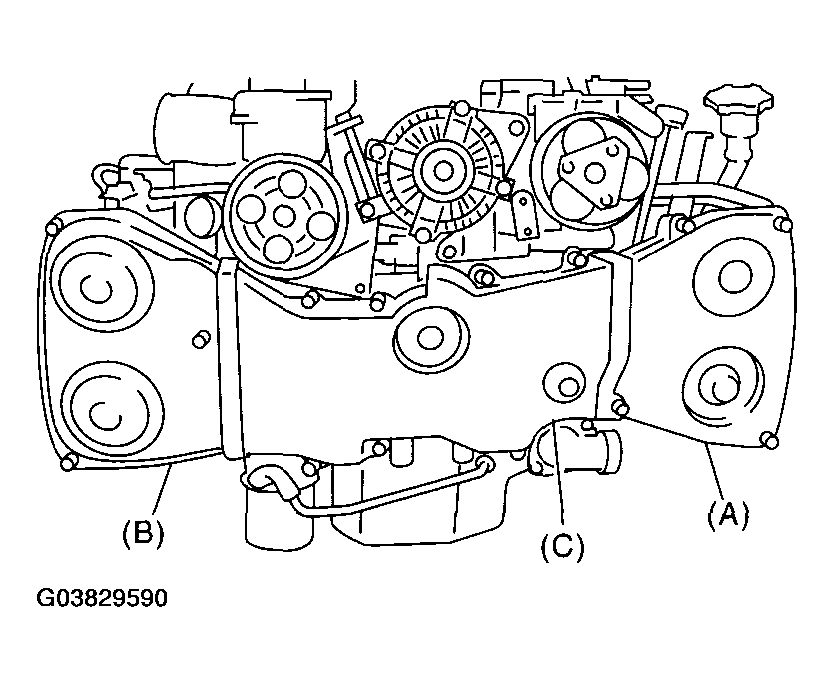

    Fig 1: Removing Timing Belt Covers
    G03829590Courtesy of SUBARU OF AMERICA, INC.
