Cam Sprocket: Removal

1. Remove the V-belts. < Ref. to , REMOVAL , V-belt. >
2. Remove the crank pulley.

   < Ref. to , REMOVAL , Crank Pulley. >

3. Remove the timing belt cover.

   < Ref. to , REMOVAL , Timing Belt Cover. >

4. Remove the timing belt.

   < Ref. to , REMOVAL , Timing Belt. >

5. Remove the cam sprocket. To lock the camshaft, use ST.

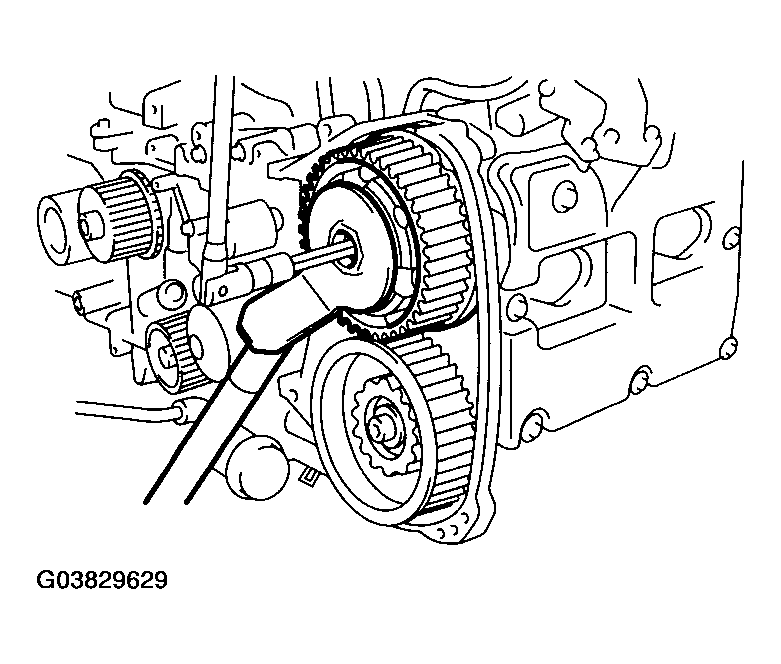

ST 499207400 CAMSHAFT SPROCKET WRENCH

Fig 1: Locking Cam Sprocket Using Special Tool

Courtesy of SUBARU OF AMERICA, INC.

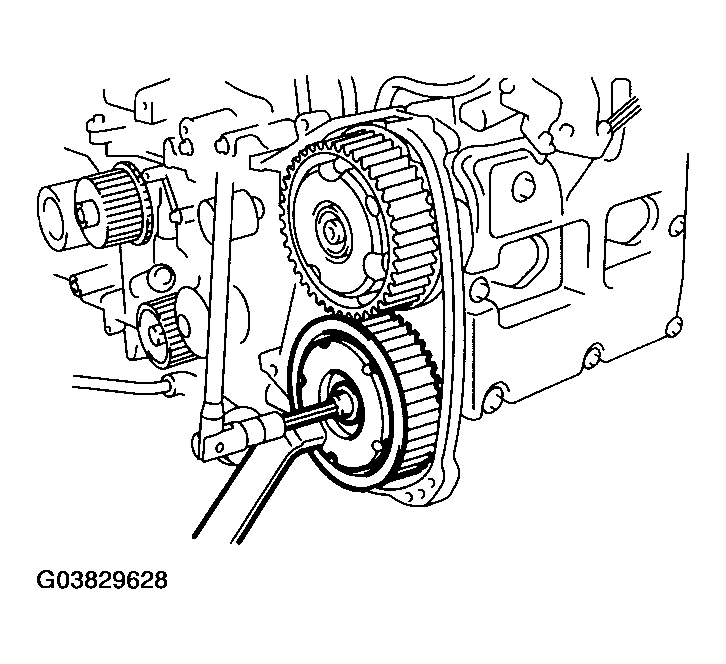

ST 499977500 CAMSHAFT SPROCKET WRENCH

Fig 2: Removing Cam Sprocket Using Special Tool

Courtesy of SUBARU OF AMERICA, INC.
