Crankshaft Sprocket: Removal

  1. Remove V-belt. See REMOVAL , V-belt.
  2. Remove crankshaft pulley. See REMOVAL , Crankshaft Pulley.
  3. Remove belt cover. See REMOVAL , Belt Cover.
  4. Remove timing belt assembly. See REMOVAL , Timing Belt Assembly.
  5. Remove camshaft sprocket. See REMOVAL , Camshaft Sprocket.
  6. Remove crankshaft sprocket.

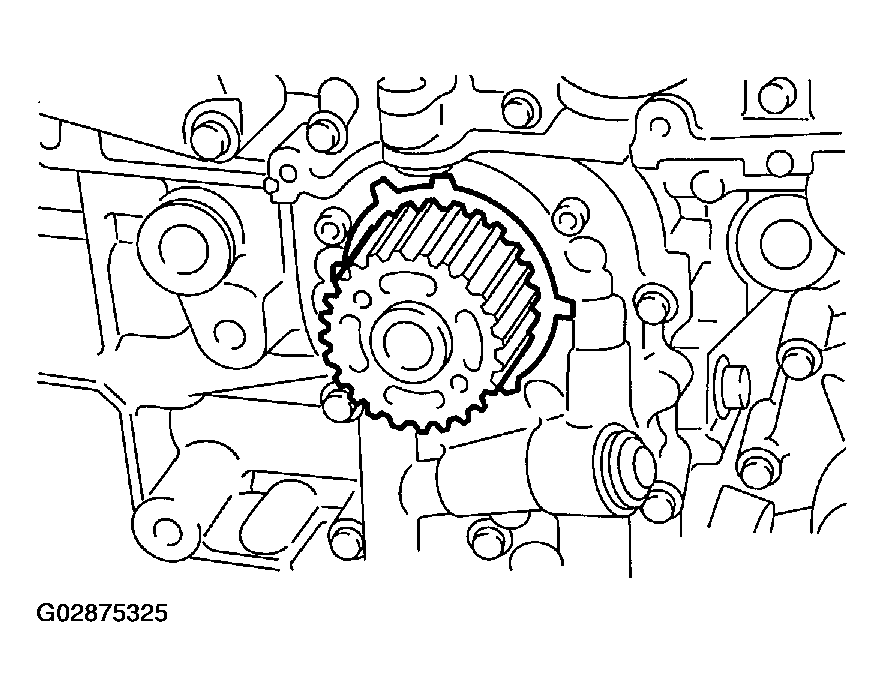

    Fig 1: Removing Crankshaft Sprocket
    G02875325Courtesy of SUBARU OF AMERICA, INC.
