Belt Cover: Removal

  1. Remove V-belt. See REMOVAL , V-belt.
  2. Remove crankshaft pulley. See REMOVAL , Crankshaft Pulley.
  3. Remove belt cover (LH).
  4. Remove front belt cover.

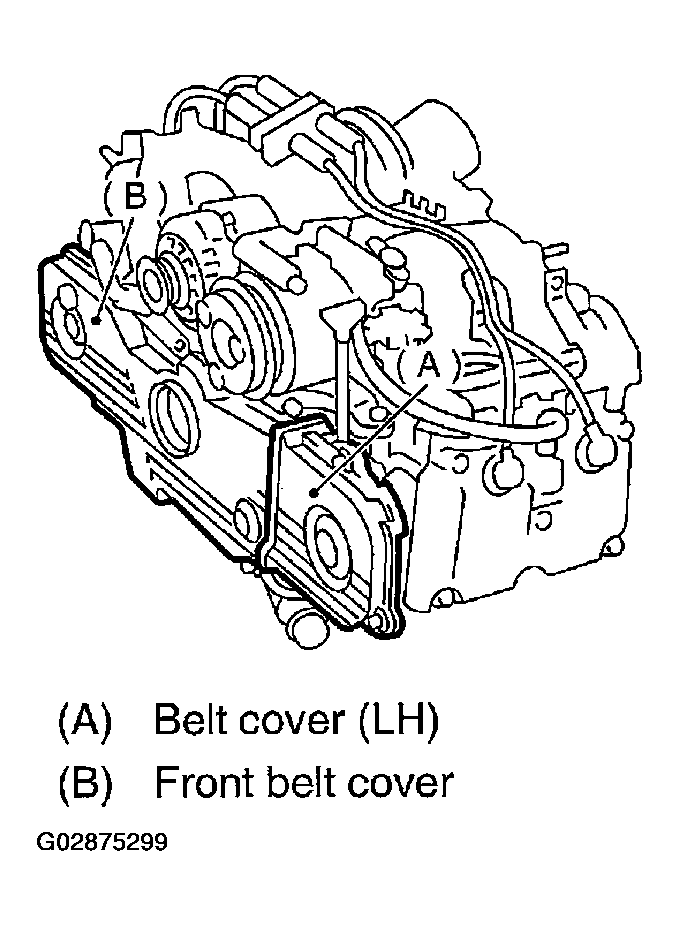

    Fig 1: Removing Front Belt Cover
    G02875299Courtesy of SUBARU OF AMERICA, INC.
