Camshaft Sprocket: Removal

  1. Remove V-belt. See REMOVAL , V-belt.
  2. Remove crankshaft pulley. See REMOVAL , Crankshaft Pulley.
  3. Remove belt cover. See REMOVAL , Belt Cover.
  4. Remove timing belt assembly. See REMOVAL , Timing Belt Assembly.
  5. Remove camshaft position sensor. See REMOVAL , Camshaft Position Sensor.
  6. Remove camshaft sprocket No. 1 and No. 2. To lock camshaft, use ST.
    1. ST 18231AA010 CAMSHAFT SPROCKET WRENCH
    NOTE: CAMSHAFT SPROCKET WRENCH (499207100) is also can be used.

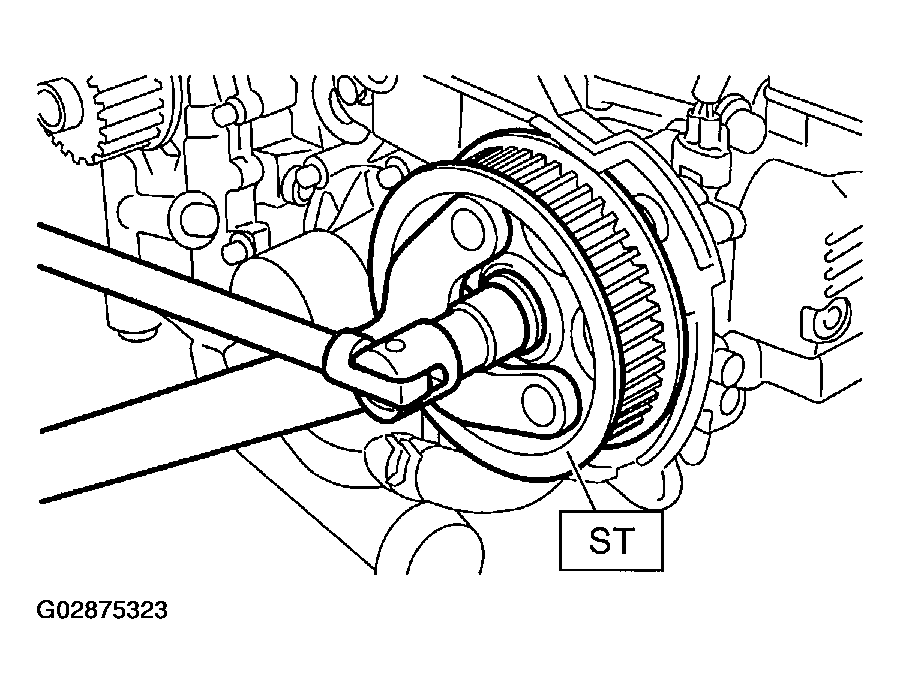

    Fig 1: Removing Camshaft Sprocket No. 1 & No. 2
    G02875323Courtesy of SUBARU OF AMERICA, INC.
