Crankshaft Pulley: Removal

  1. Remove V-belt. See REMOVAL , V-belt.
  2. Remove crankshaft pulley bolt. To lock crankshaft, use ST.
    1. ST 499977100
    2. CRANKSHAFT PULLEY WRENCH

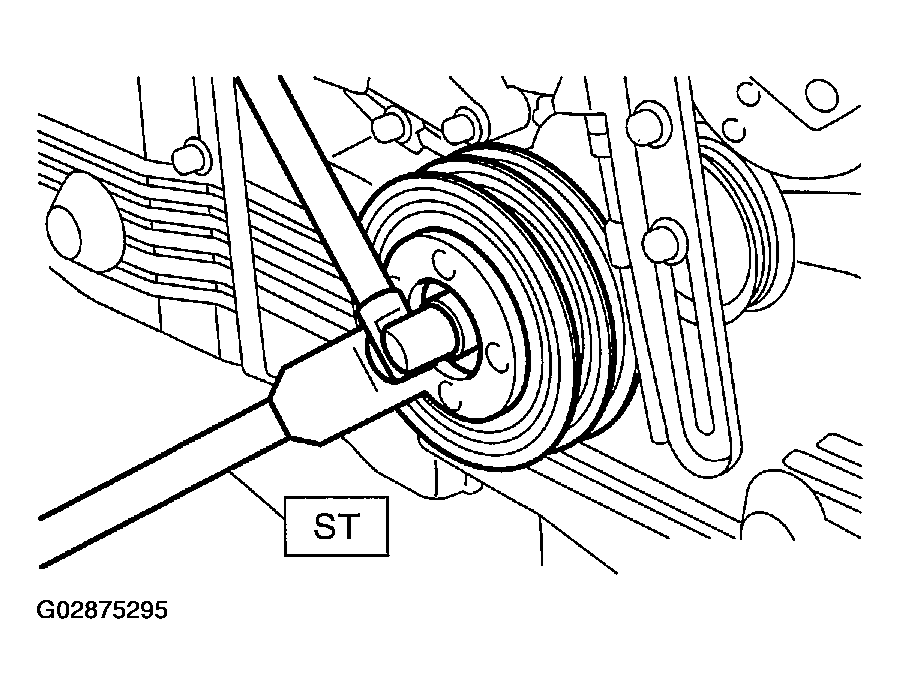

    Fig 1: Removing Crankshaft Pulley Bolt
    G02875295Courtesy of SUBARU OF AMERICA, INC.
  3. Remove crankshaft pulley.
