Engine Mechanical (H4SO): Camshaft: Removal

  1. Remove V-belt. See INSTALLATION , V-belt.
  2. Remove crankshaft pulley. See REMOVAL , Crankshaft Pulley.
  3. Remove belt cover. See REMOVAL , Belt Cover.
  4. Remove timing belt assembly. See REMOVAL , Timing Belt Assembly.
  5. Remove camshaft sprocket. See REMOVAL , Camshaft Sprocket.
  6. Remove crankshaft sprocket. See REMOVAL , Crankshaft Sprockets.
  7. Remove belt cover No. 2 (LH).
  8. Remove belt cover No. 2 (RH).
    NOTE: Do not damage or lose the seal rubber when removing belt covers.

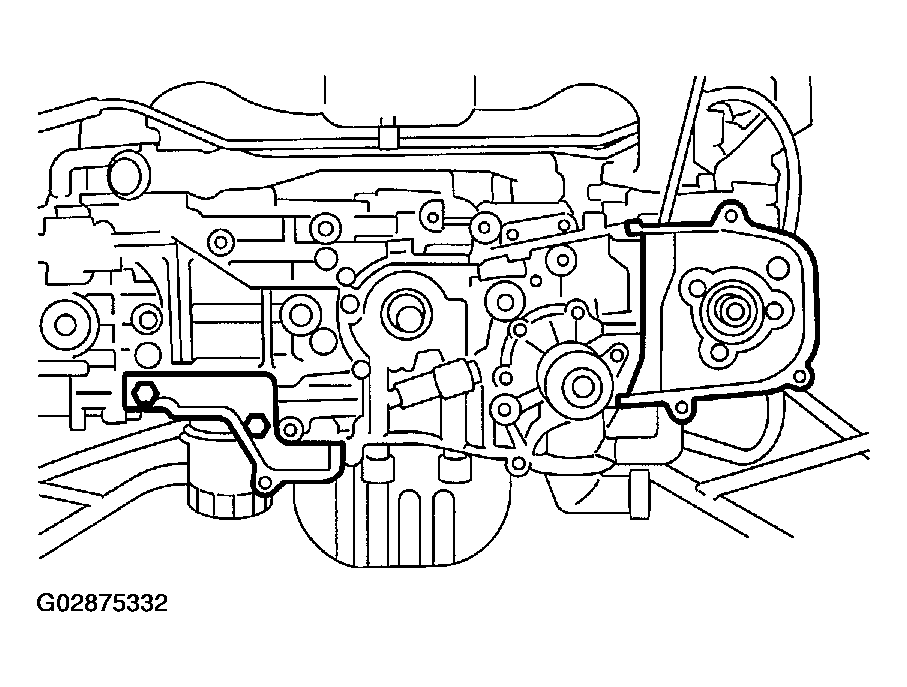

    Fig 1: Removing Belt Cover No. 2 (LH & RH)
    G02875332Courtesy of SUBARU OF AMERICA, INC.
  9. Remove tensioner bracket.

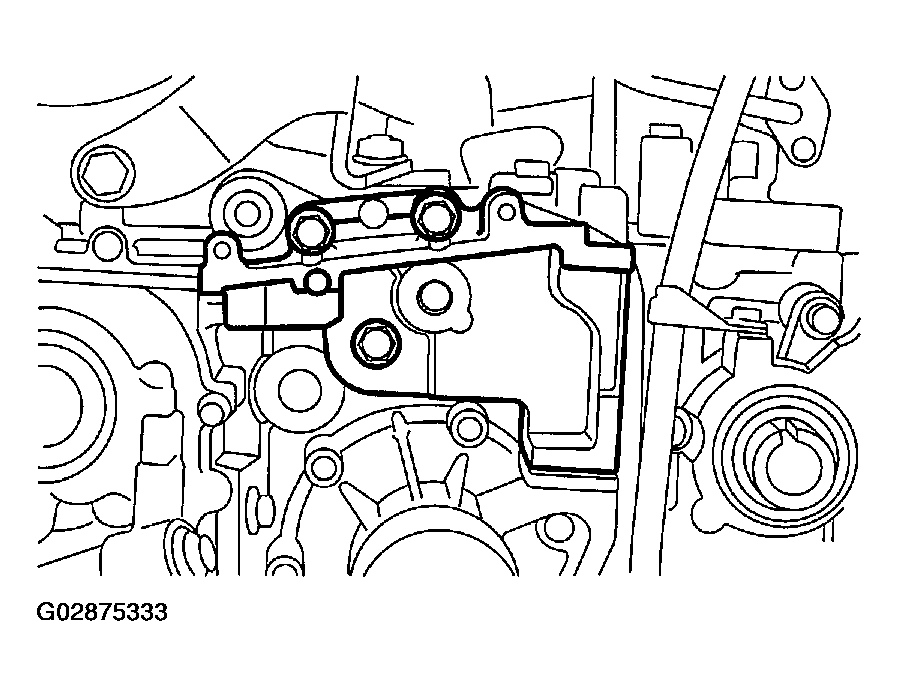

    Fig 2: Removing Tensioner Bracket
    G02875333Courtesy of SUBARU OF AMERICA, INC.
  10. Remove camshaft position sensor support. (LH side only)
  11. Remove oil level gauge guide. (LH side only)
  12. Remove valve rocker assembly. See REMOVAL , Valve Rocker Assembly.
  13. Remove camshaft cap.
    1. Remove bolts (a) through (b) in alphabetical sequence.

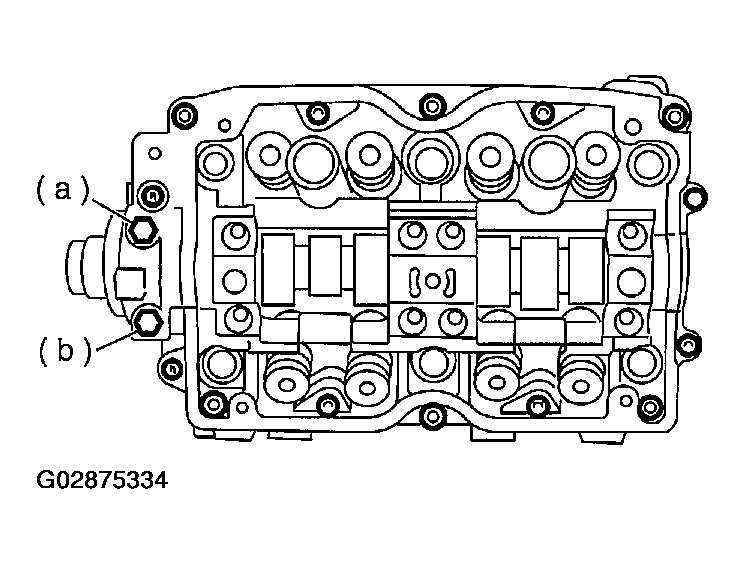

      Fig 3: Removing Bolts In Alphabetical Sequence (a through b)
      G02875334Courtesy of SUBARU OF AMERICA, INC.
    2. Equally loosen bolts (c) through (j) all the way in alphabetical sequence.
      Fig 4: Loosening Bolts Through In Alphabetical Sequence (c through j)
      G02875335Courtesy of SUBARU OF AMERICA, INC.
    3. Remove bolts (k) through (p) in alphabetical sequence using ST.
      1. ST 499497000 TORX PLUS

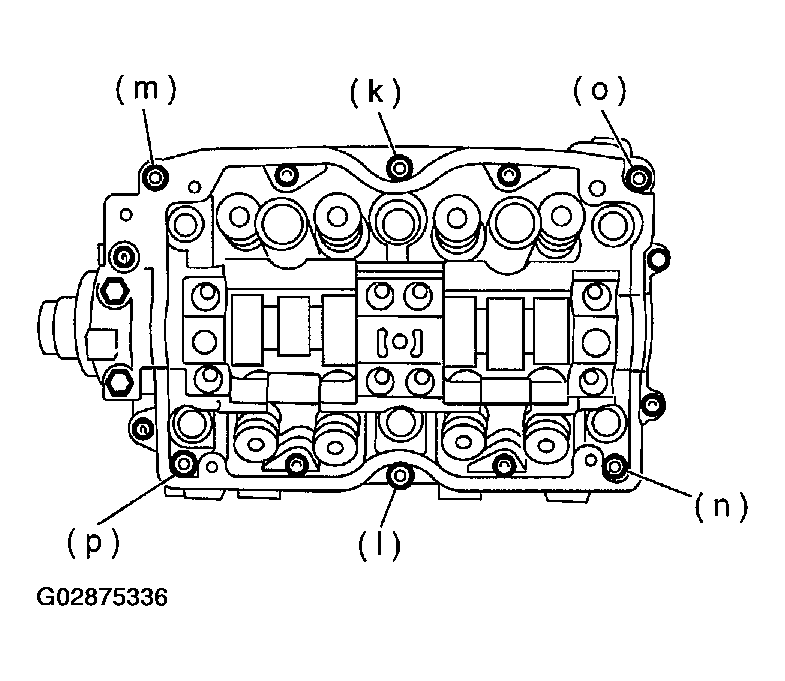

      Fig 5: Removing Bolts In Alphabetical Sequence
      G02875336Courtesy of SUBARU OF AMERICA, INC.
    4. Remove camshaft cap.

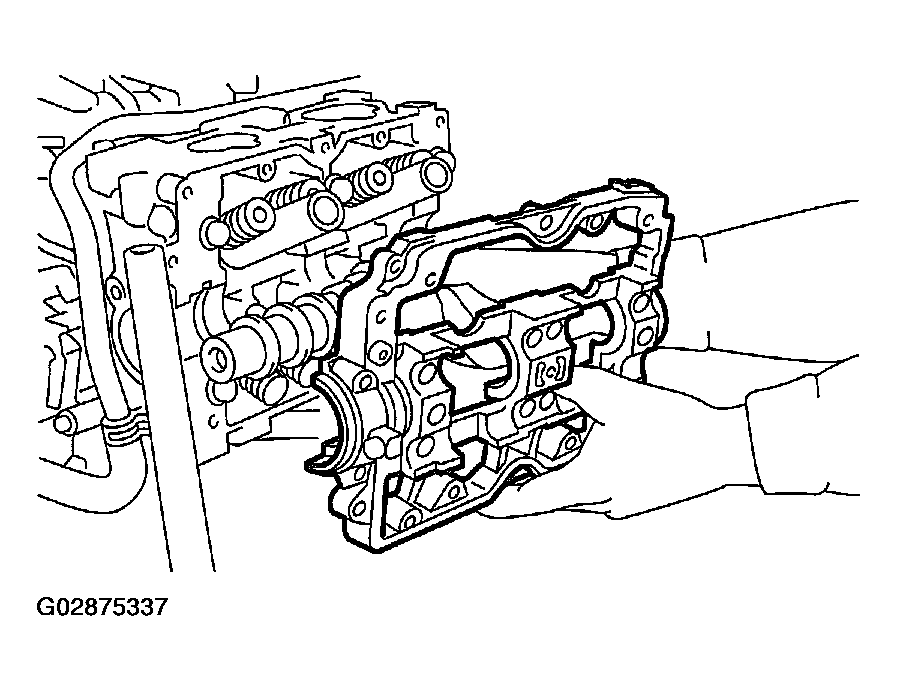

    Fig 6: Removing Camshaft Cap
    G02875337Courtesy of SUBARU OF AMERICA, INC.
  14. Remove camshaft.
  15. Remove oil seal.
  16. Remove plug from rear side of camshaft.
NOTE:
  • Do not remove oil seal unless necessary.
  • Do not scratch journal surface when removing oil seal.
