Remove/Install The Suspension Strut - AR32.25-P-1017SR
MODEL 453
MODIFICATION NOTES
| 28.08.2017 | Nut, connecting linkage to suspension strut | BA32.20-P-1001-02S |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove wiper motor | When removing the left suspension strut (1). | AR82.30-P-6800SR |

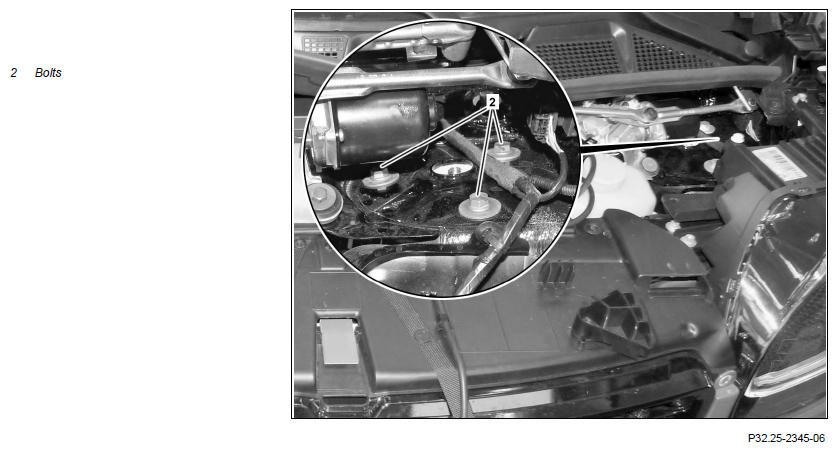

| 2 | Unscrew bolts (2) | *BA32.25-P-1001-04Q | |
| 3 | Remove left or right front wheel and tire assembly | AR40.10-P-1100SR | |

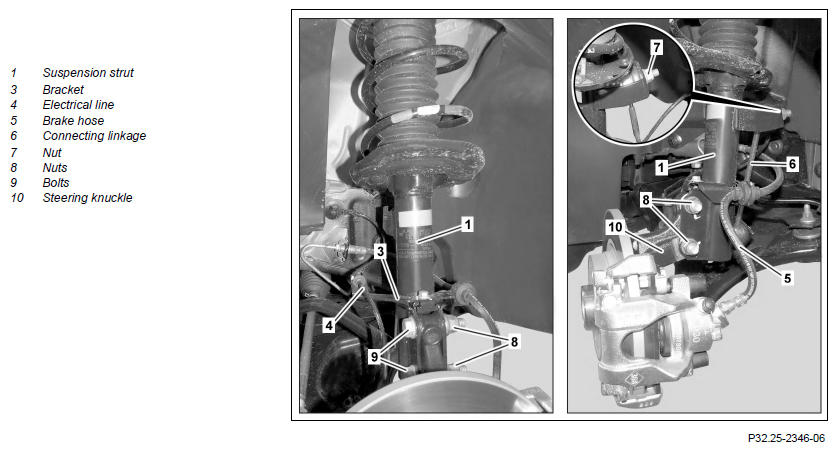

| 4 | Detach electrical line (4) from bracket (3) | ||
| 5 | Detach brake hose (5) from bracket (3) | ||
| 6 | Unscrew nut (7) from connecting linkage (6) | *BA32.20-P-1001-02S | |
| 7 | Unscrew nuts (8) and pull out bolts (9) | *BA32.25-P-1003-04Q | |
| 8 | Detach suspension strut (1) from steering knuckle (10) | ||
| 9 | Detach connecting linkage (6) from suspension strut (1) and remove suspension strut (1) downwards | Otherwise the electrical line (4) or the brake hose (5) can be damaged. |
|
| Check | |||
| 10 | Check damper for external oil leaks | AR32.25-P-0121SR | |
| 11 | Check components of suspension strut (1) for damage | If one or more of the components is damaged: ↓ Disassemble suspension strut (1) and check all components of suspension strut (1) for damage |
AR32.25-P-1018SR |
| 12 | Install in the reverse order | ||
| 13 | Perform wheel alignment check | After replacing any component of the suspension strut (1). | AR40.20-P-0200SR |
FRONT AXLE STABILIZER BAR
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA32.20-P-1001-02S | Nut, connecting linkage to suspension strut | Nm | 50 |
SUSPENSION STRUTS
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA32.25-P-1001-04Q | Bolt, suspension strut to body | Nm | 21 |
SUSPENSION STRUTS
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA32.25-P-1003-04Q | Bolt of suspension strut to steering knuckle | Nm | 105 |
