Disassemble/Assemble Suspension Strut - AR32.25-P-1018SR
MODEL 453
MODIFICATION NOTES
| 22.7.15 | Special tool inserted |
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension | Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. | AS00.00-Z-0001-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||
| 1 | Remove suspension strut | AR32.25-P-1017SR | |
| Disassemble/assemble | |||
| 2 | Remove spring (6) | AR32.20-P-0200-05SR | |
| *BA32.25-P-1002-04Q | |||

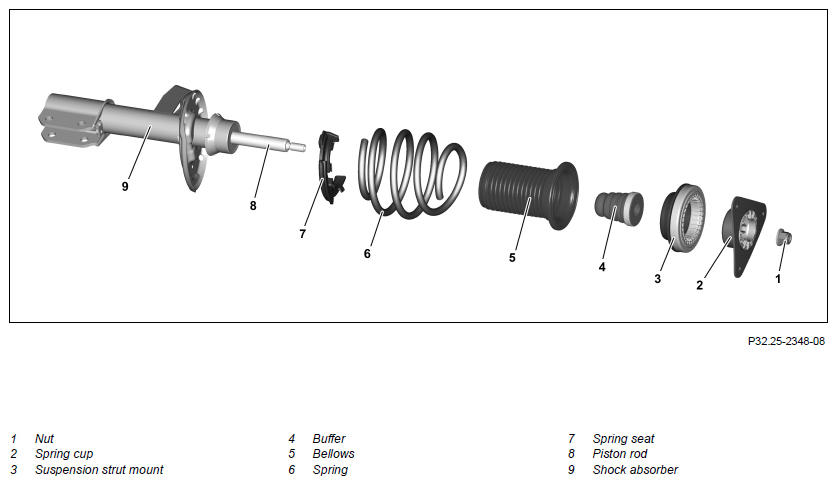

| Fig 1 | |||
| Fig 2 | |||
| 3 | Remove boot (5) from suspension strut mount (3) | ||
| 4 | Remove spring cup (2) from suspension strut mount (3) | ||
| 5 | Detach buffer (4) from piston rod (8) | ||
| Check | |||
| 6 | Check spring cup (2) for wear and damage | In the event of complaints ↓ Replace spring cup (2) |
|
| 7 | Check-pension strut mount (3) for wear and damage | In the event of complaints ↓ Replace suspension strut bearing (3) |
|
| 8 | Check buffer (4), boot (5) and spring seat (7) for wear, soiling and damage | If boot (5), buffer (4) or spring seat (7) are cracked, oiled up or deformed. ↓ Replace boot (5), buffer (4) or spring seat (7) |
|
| 9 | Check spring (6) for damage | In the event of complaints ↓ Replace spring (6) |
|
| 10.1 | Replace spring (6) on other side of vehicle | When replacing a spring (6) and for a kilometer reading of > 60, 000 km | |
| 10.2 | Visually inspect spring (6) on other side of vehicle for damage | When replacing a spring (6) and for a kilometer reading of < 60, 000 km In the event of complaints ↓ Replace spring (6) |
|
| 11 | Check damper (9) for wear and damage | AR32.25-P-0121SR | |
| 12 | Assemble in the reverse order | ||
| Install | |||
| 13 | Install suspension strut | AR32.25-P-1017SR |
SUSPENSION STRUTS
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA32.25-P-1002-04Q | Nut, suspension strut mount to piston rod | Nm | 62 |
