Remove/Install Parktronic System (PTS) Sensors In Rear Bumper - AR54.65-P-0002SR
MODEL 453
with CODE 220 (Rear parking assist)
MODEL 453
with CODE V52 (Combination code for rear parking aid and reversing camera)

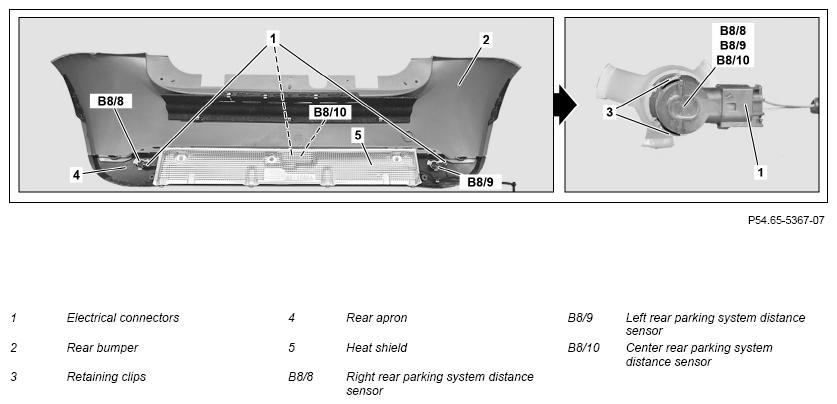

Shows on model 453.3

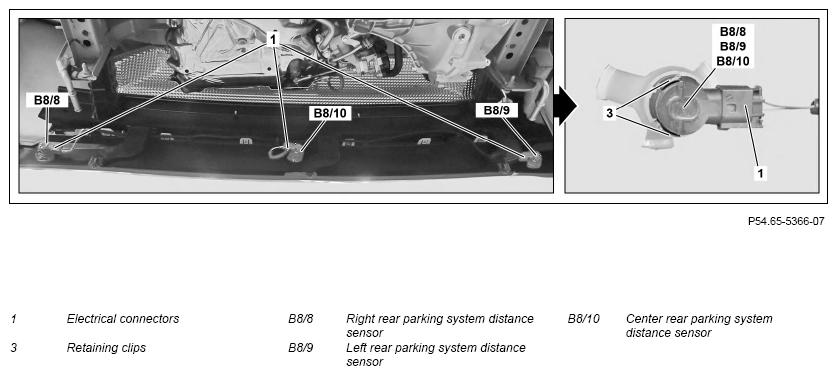

Shows on model 453.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Detach fender liner in the area of rear apron (4) | Model 453.3/4 with code 220 (Rear parking assist) Model 453.3/4 with code V52 (Combination code for rear parking aid and reversing camera) |
AR88.10-P-1400SRA |
| 2 | Unclip rear apron (4) from rear bumper (2) | Model 453.3/4 with code 220 (Rear parking assist) Model 453.3/4 with code V52 (Combination code for rear parking aid and reversing camera) |
Fig 1 |
| 3 | Remove heat shield (5) in the area of center rear parking system distance sensor (B8/10) | Model 453.3 (except 453.391), 453.4 (except 453.491) with code 220 (Rear parking assist) Model 453.3 (except 453.391), 453.4 (except 453.491) with code V52 (Combination code for rear parking aid and reversing camera) |
AR88.20-P-1925SRA |
| 4 | Separate electrical connections (1) | ||
| 5 | Unclip parking system distance sensors (B8/8, B8/9, B8/10) from retaining clip (3) and remove | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Read out fault memory using diagnostic unit and delete | ||
| AD00.00-P-2000-06SR |
