Connect/Disconnect Diagnostic Unit - AD00.00-P-2000-06SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

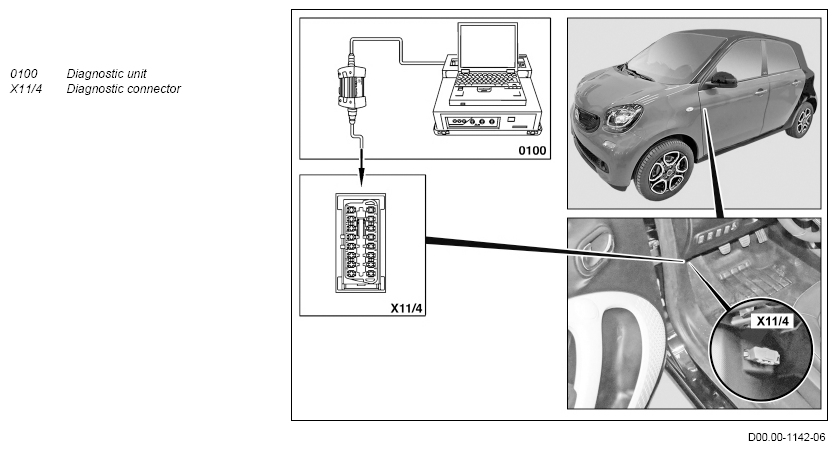

1. Connect diagnostic unit (0100).
2. Switch on ignition.
3. Start the Diagnosis Assistance System.
4. Select the model series in the menu.

   The work procedures in the diagnosis program are menu-assisted.

5. Disconnect diagnostic unit (0100).

   Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
